Case And Housing

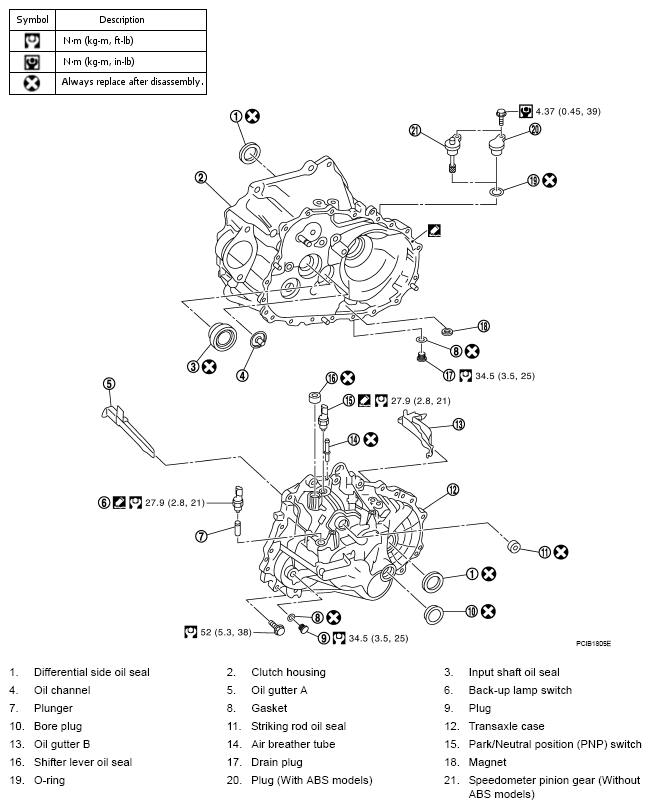

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications (1 Of 5)

: Apply Genuine Silicone RTV or an equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Refer to "COMPONENTS " for symbols not described on the above.
