Component Parts Location

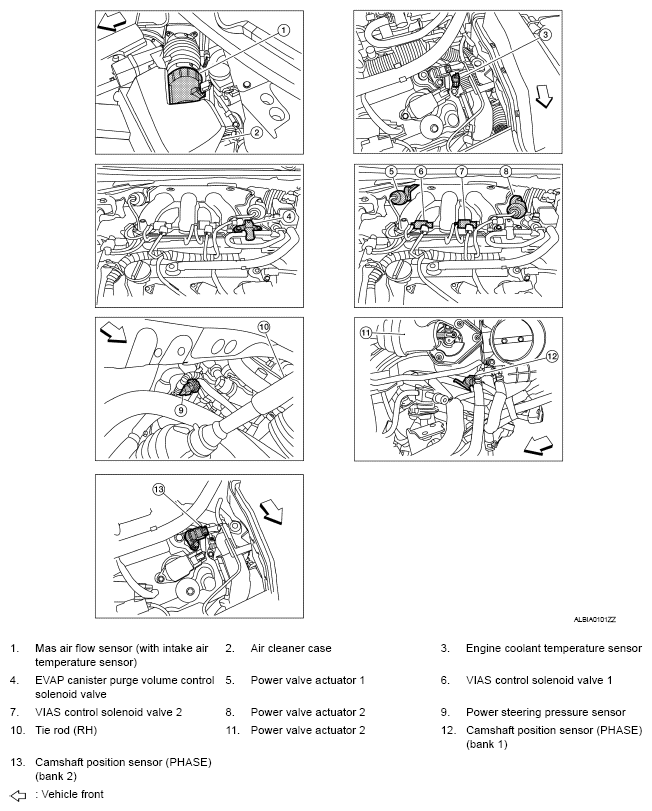

Fig 1: Identifying Automatic Speed Control Device Components (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

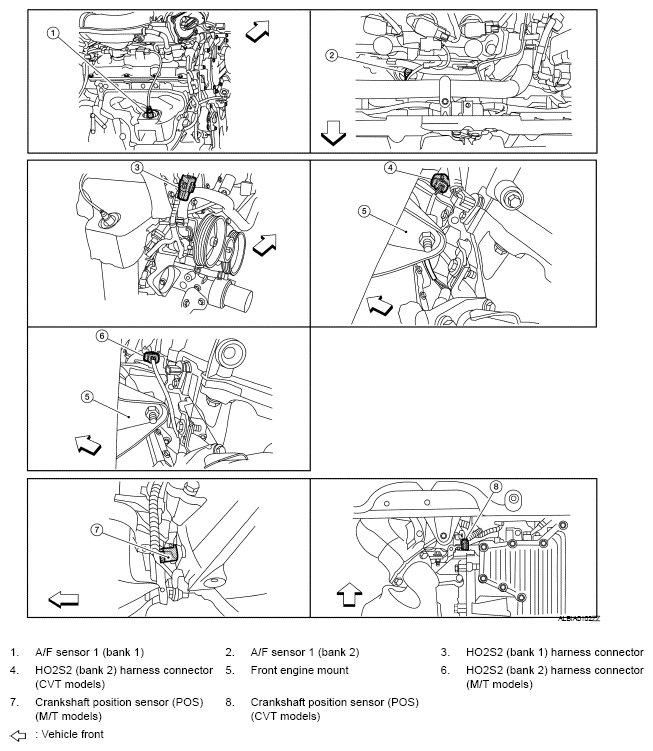

Fig 2: Identifying Automatic Speed Control Device Components (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

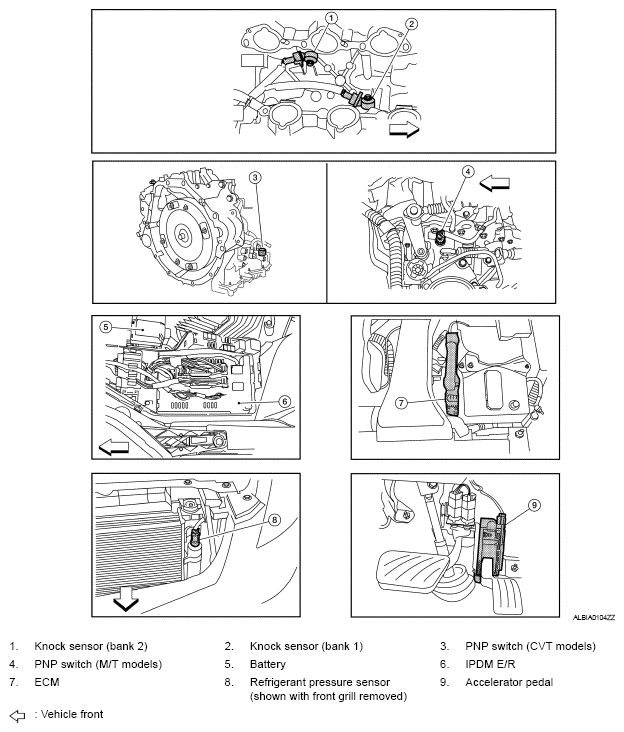

Fig 3: Identifying Automatic Speed Control Device Components (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

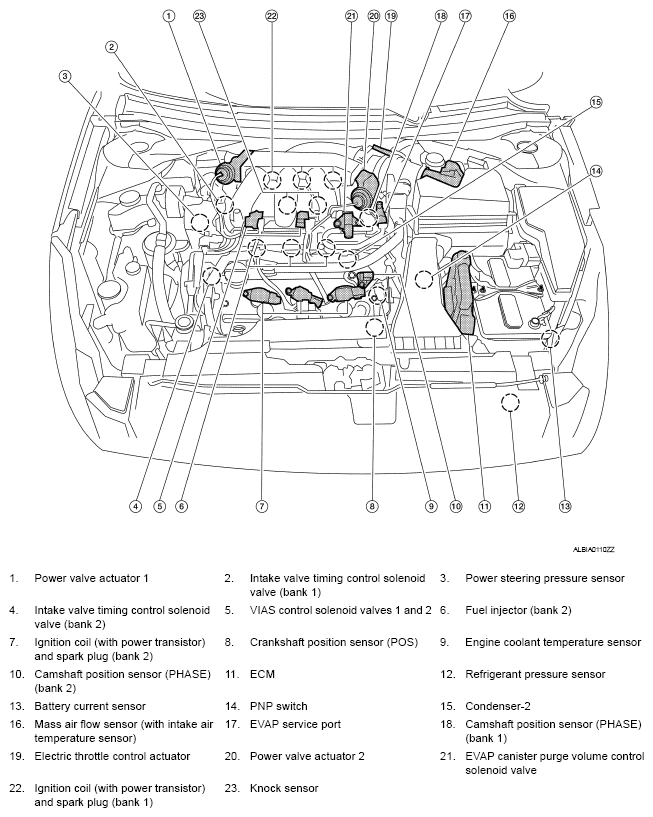

Fig 4: Identifying Automatic Speed Control Device Components (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

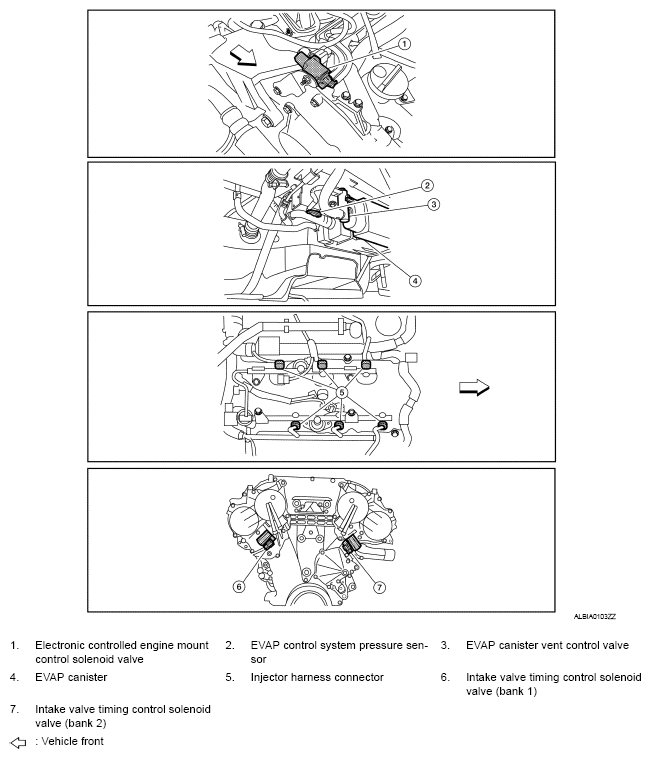

Fig 5: Identifying Automatic Speed Control Device Components (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

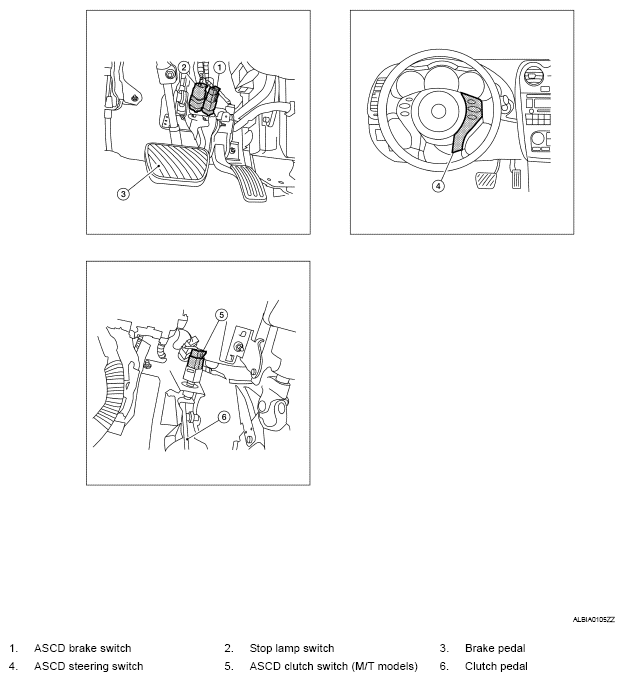

Fig 6: Identifying Automatic Speed Control Device Components (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Automatic Speed Control Device Components (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
