Engine Control System - Introduction (VQ35DE)
>>
Cooling Fan Control
>>
System Description
>>
Input/Output Signal Chart
>>
Cooling Fan Operation
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cooling Fan Operation

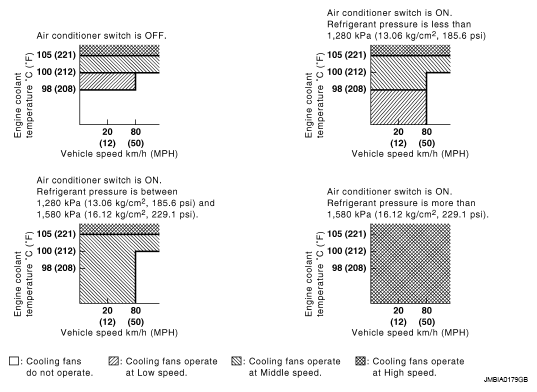

Fig 1: Cooling Fan Operation
Courtesy of NISSAN NORTH AMERICA, INC.
