IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Slide the harness protector of ignition coil No. 1 (2) to clear the wires.
2. Attach timing light to the ignition coil No. 1 wires as shown in the figure.

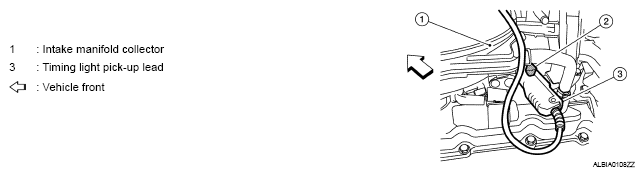

  Fig 1: Attaching Timing Light To Ignition Coil No. 1 Wires
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Check ignition timing.
  : INSPECTION END

  Fig 2: Checking Ignition Timing
  Courtesy of NISSAN NORTH AMERICA, INC.
