ASCD Indicator: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS FRONTIER-->.

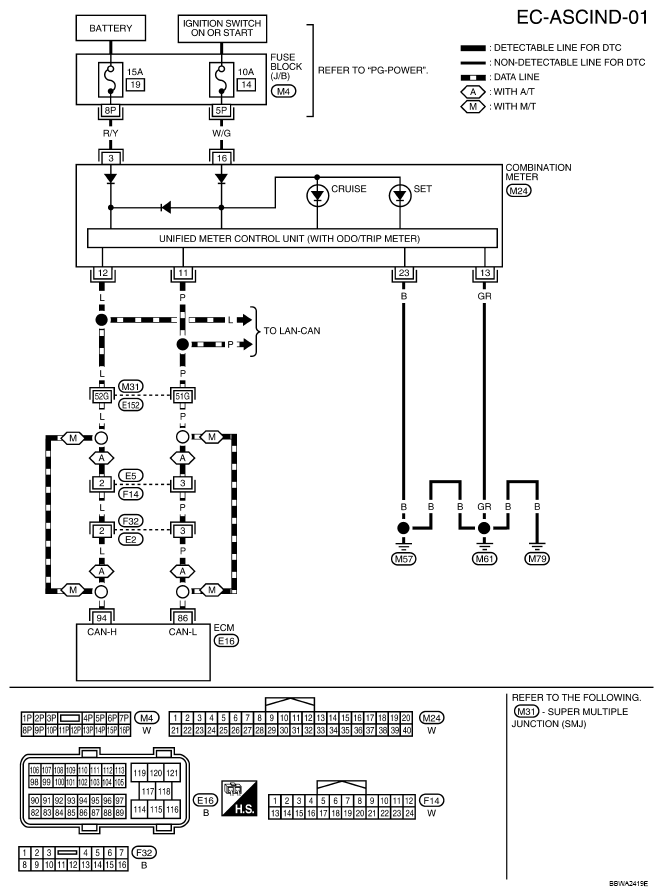

Fig 1: ASCD Indicator Wiring Diagram (EC-ASCIND-01)
G04895178Courtesy of NISSAN NORTH AMERICA, INC.
