Evaporative Emission Line Drawing

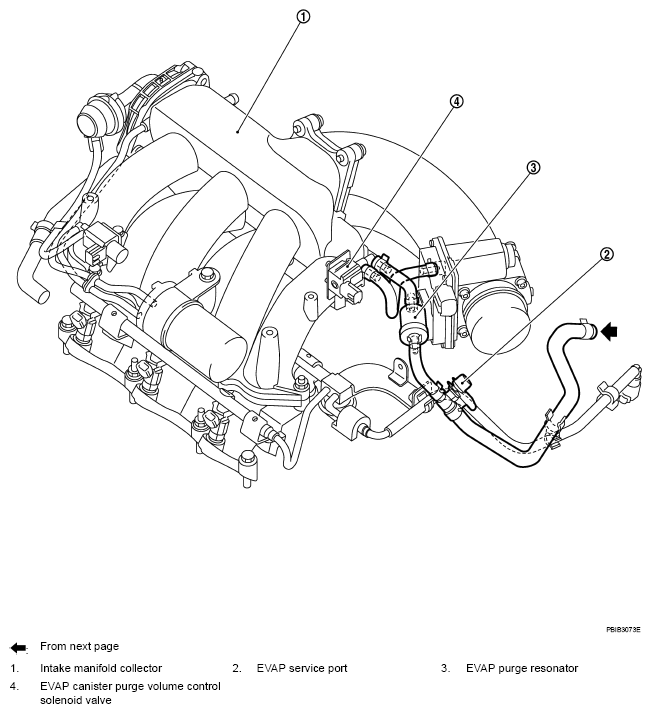

Fig 1: Identifying Evaporative Emission Components (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

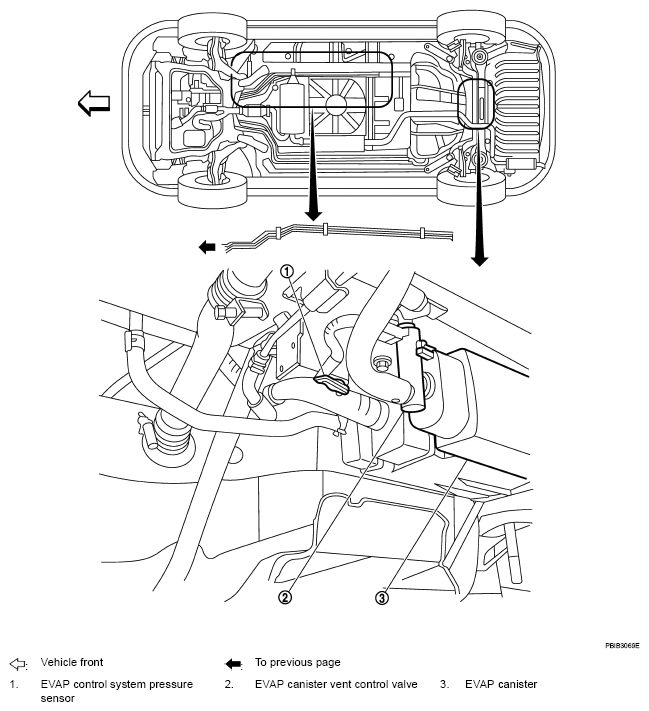

Fig 2: Identifying Evaporative Emission Components (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
