Wiring Diagram - KEYLES -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

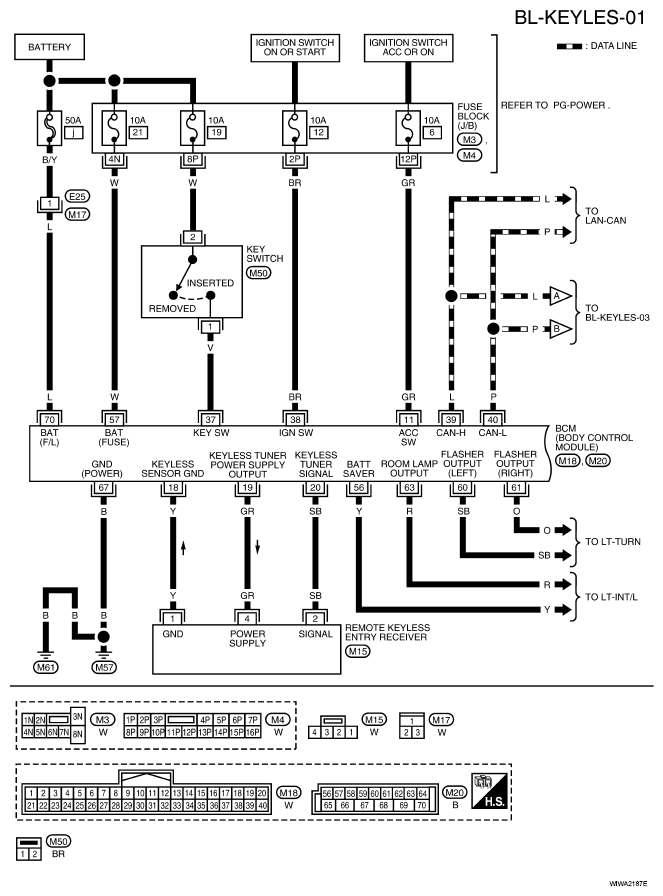

Fig 1: Wiring Diagram - BL-KEYLES-01
G04927589

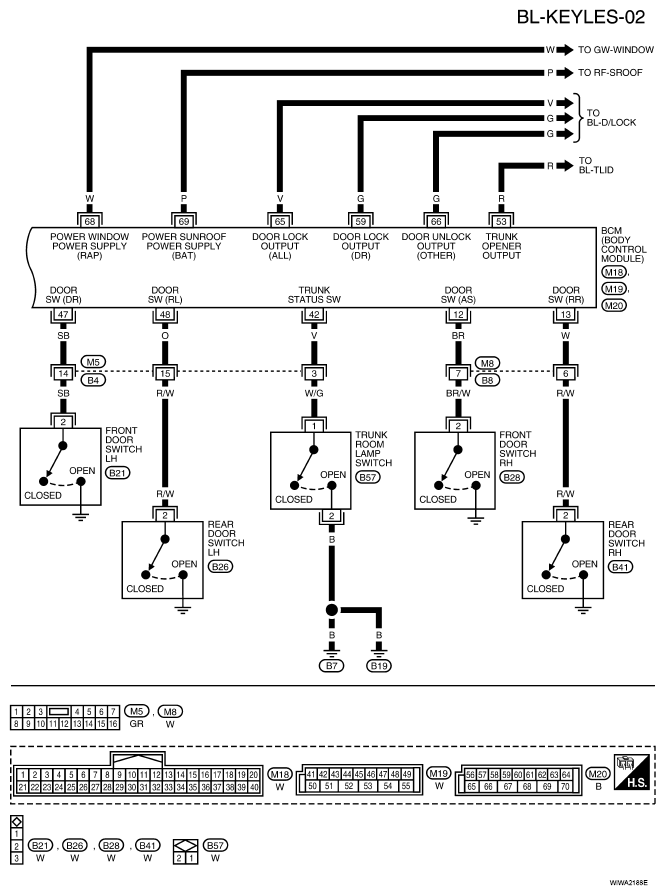

Fig 2: Wiring Diagram - BL-KEYLES-02
G04927590
Fig 3: Wiring Diagram - BL-KEYLES-03
G04927591
