Parking Brake Control: Components

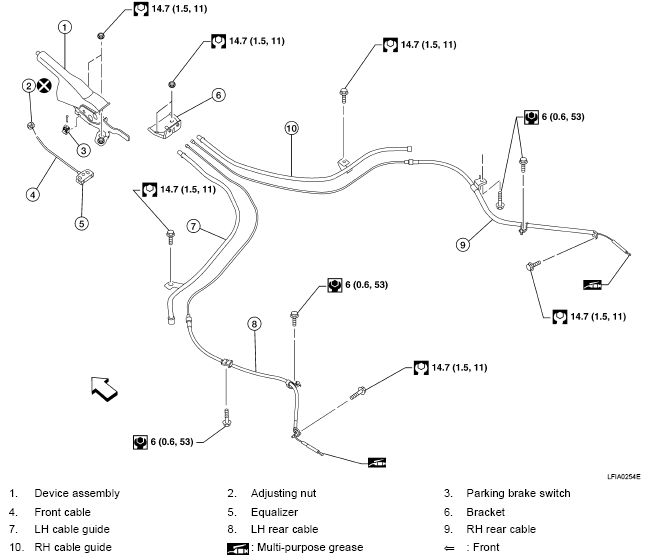

Fig 1: Parking Brake Control Replacement Components With Torque Specifications
G04927359

Refer to GI section "COMPONENTS " for symbol marks except as shown above.
