Engine Compartment Junction & Relay Blocks

NOTE: For engine compartment electrical unit locations, see Fig 1.

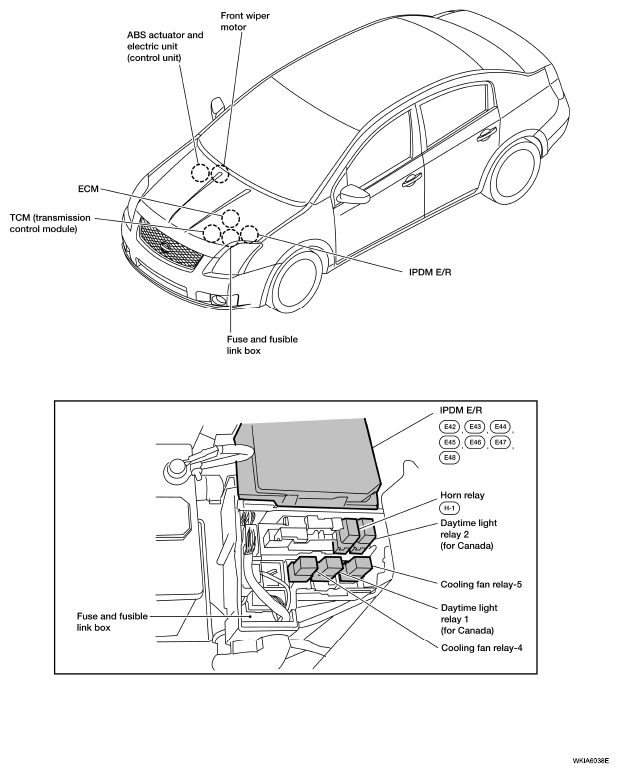

Fig 1: Locating Electrical Units In Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

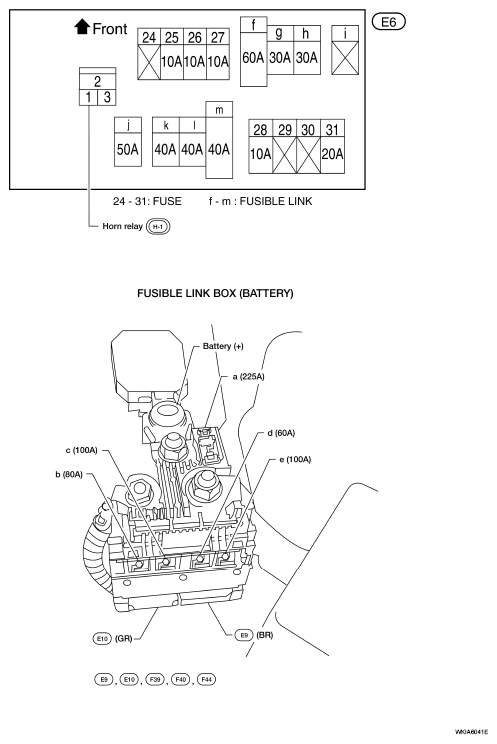

Fig 2: Identifying Fuse & Fusible Link Block Components

Courtesy of NISSAN MOTOR CO., U.S.A.

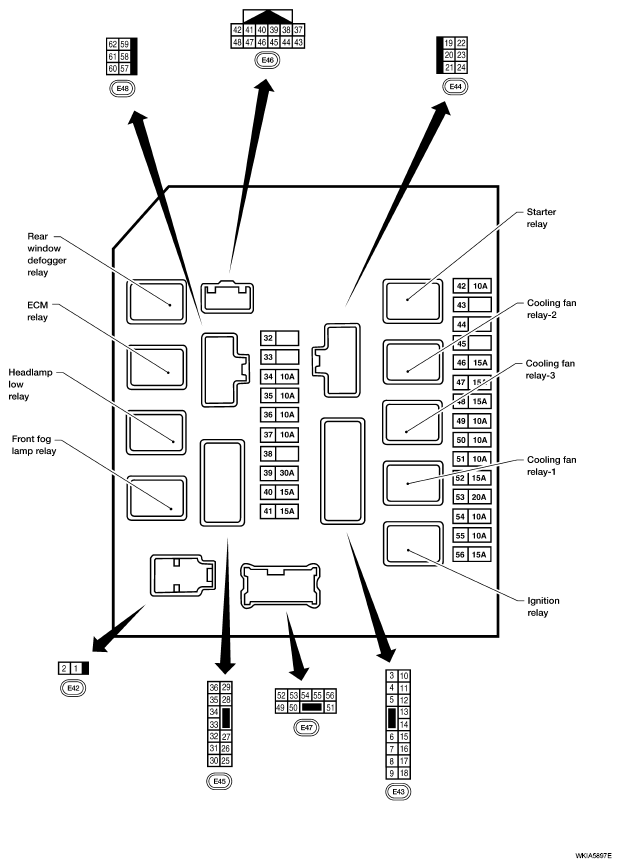

Fig 3: Identifying Intelligent Power Distribution Module Relays & Fuses

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: IPDM Relays (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Lamp Relay
Headlamp High Relay RH
Headlamp High Relay LH
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

Fig 5: IPDM Relays (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Wiper Relay
Front Wiper High Relay
A/C Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

Fig 6: IPDM Relays (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Throttle Control Motor Relay
ECM Relay
Rear Window Defogger Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

Fig 7: IPDM Relays (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay
Fuel Pump Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
