ASCD Indicator: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

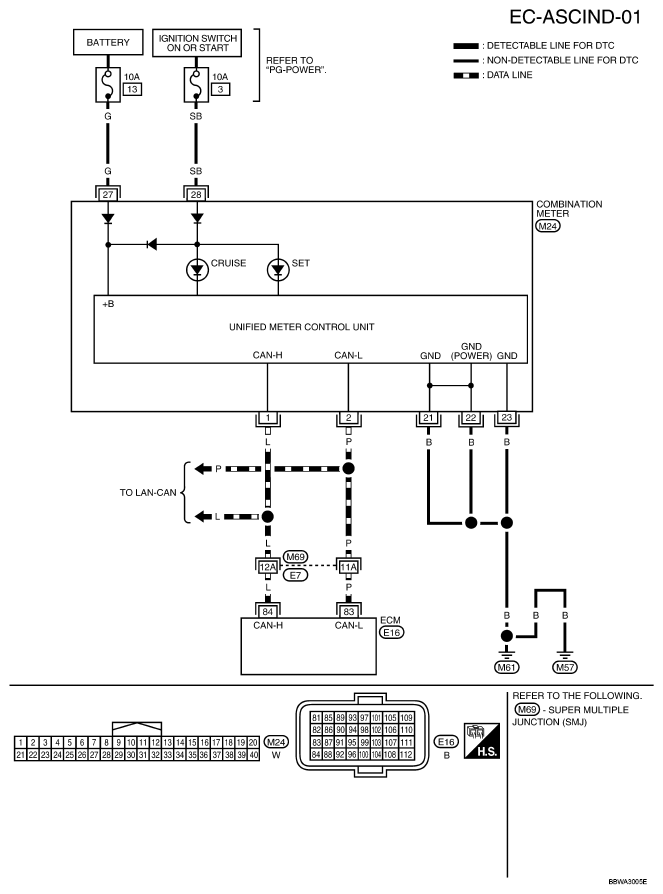

Fig 1: EC-ASCIND-01 - Wiring Diagram
G04812594Courtesy of NISSAN NORTH AMERICA, INC.
