Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground screws on the body.

      Refer to "GROUND INSPECTION ".

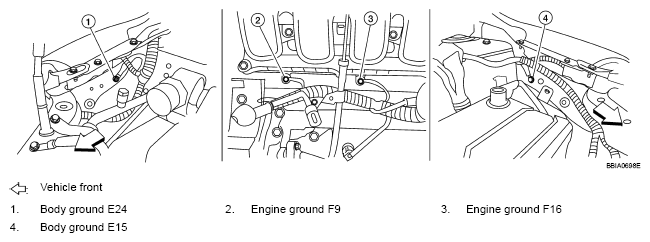

      Fig 1: Identifying Ground Connections
      G04812381Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK >> GO TO 2.

      NG >> Repair or replace ground connections.

  2. CHECK CONNECTOR
    1. Disconnect EVAP control system pressure sensor (1) harness connector.
      • EVAP canister (2)
      • EVAP canister vent control valve (3)
    2. Check sensor harness connector for water.

      Water should not exist.

      Fig 2: Identifying EVAP Control System Pressure Sensor, EVAP Canister And EVAP Canister Vent Control Valve
      G04811911Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK >> GO TO 3.

      NG >> Repair or replace harness connector.

  3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch ON.
    2. Check voltage between EVAP control system pressure sensor terminal 3 and ground with CONSULT-II or tester.

      Voltage: Approximately 5V

      OK or NG

      OK >> GO TO  5.

      NG >> GO TO 4.

      Fig 3: Checking Voltage Between Connector Terminal 3 And Ground
      G04812383Courtesy of NISSAN NORTH AMERICA, INC.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E8, F8
    • Harness connectors M69, E7
    • Harness connectors B102, M13
    • Harness for open or short between EVAP control system pressure sensor and ECM

      >> Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between EVAP control system pressure sensor terminal 3 and ECM terminal 76.

      Continuity should exist.

      OK or NG

      OK >> GO TO  7.

      NG >> GO TO 6.

  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E8, F8
    • Harness connectors M69, E7
    • Harness connectors B102, M13
    • Harness for open or short between EVAP control system pressure sensor and ECM

      >> Repair open circuit or short to ground or short to power in harness or connectors.

  7. CHECK COMPONENTS POWER SUPPLY

    Check harness for short to power and short to ground, between the following terminals.

    ECM TERMINAL REFERENCE CHART

    ECM terminal Sensor terminal Reference
    74 Refrigerant pressure sensor terminal 3 "WIRING DIAGRAM "
    75 Crankshaft position sensor (POS) terminal 1 "WIRING DIAGRAM "
    76 EVAP control system pressure sensor terminal 3 "WIRING DIAGRAM "
    102 APP sensor terminal 5 "WIRING DIAGRAM "

    OK or NG

    OK >> GO TO 8.

    NG >> Repair short to ground or short to power in harness or connectors.

  8. CHECK COMPONENTS

    Check the following.

    • Refrigerant pressure sensor (Refer to " TROUBLE DIAGNOSIS  "  .)
    • Crankshaft position sensor (POS) (Refer to "COMPONENT INSPECTION ".)

      OK or NG

      OK >> GO TO 9.

      NG >> Replace malfunctioning components.

  9. CHECK APP SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK >> GO TO  11.

    NG >> GO TO 10.

  10. REPLACE ACCELERATOR PEDAL ASSEMBLY
    1. Replace accelerator pedal assembly.
    2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
    3. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
    4. Perform "IDLE AIR VOLUME LEARNING ".

      >> INSPECTION END

  11. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal 51. Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

      OK or NG

      OK >> GO TO  13.

      NG >> GO TO 12.

  12. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E8, F8
    • Harness connectors M69, E7
    • Harness connectors B102, M13
    • Harness for open or short between EVAP control system pressure sensor and ECM

      >> Repair open circuit or short to ground or short to power in harness or connectors.

  13. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 42 and EVAP control system pressure sensor terminal 2. Refer to WIRING DIAGRAM .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

      OK or NG

      OK >> GO TO  15.

      NG >> GO TO 14.

  14. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E8, F8
    • Harness connectors M69, E7
    • Harness connectors B102, M13
    • Harness for open or short between ECM and EVAP control system pressure sensor

      >> Repair open circuit or short to ground or short to power in harness or connectors.

  15. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK >> GO TO 16.

    NG >> Replace EVAP control system pressure sensor.

  16. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    >> INSPECTION END
