Overall Sequence

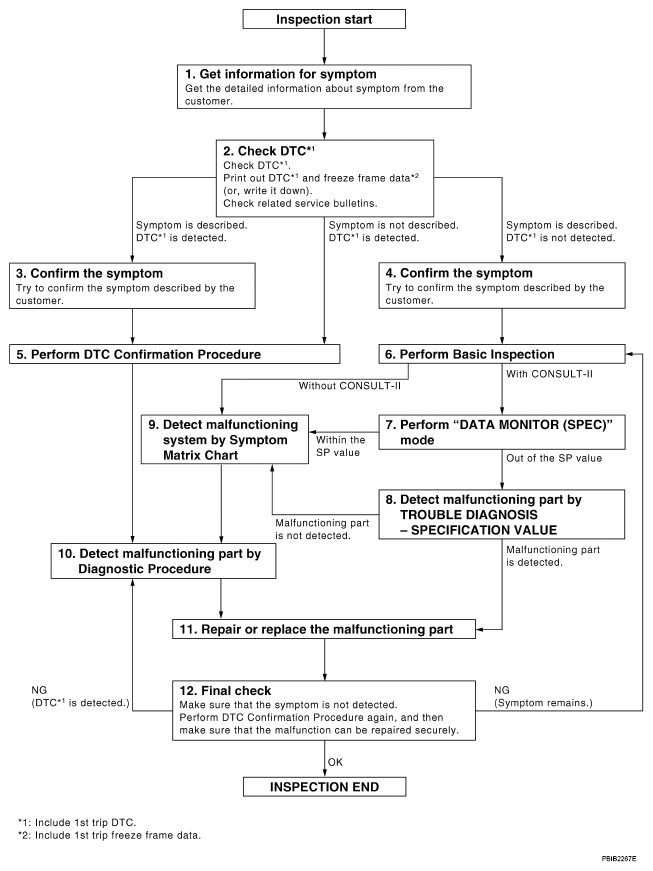

Fig 1: Work Flow Overall Sequence

G04811970

Courtesy of NISSAN NORTH AMERICA, INC.
