Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

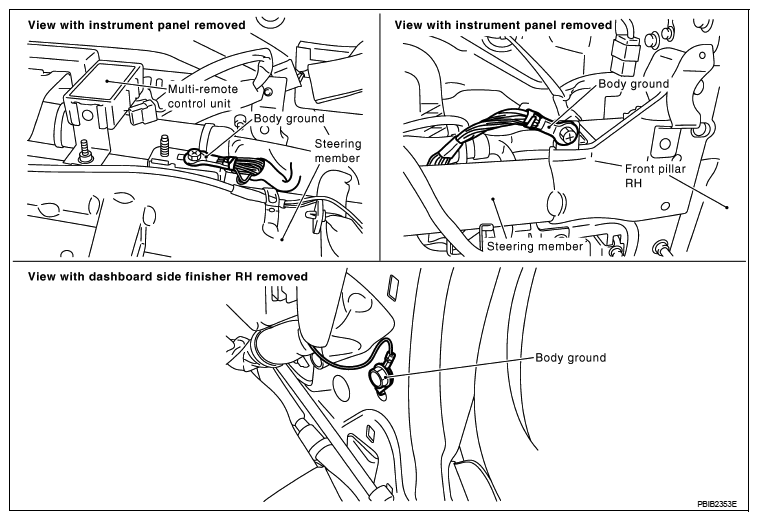

Fig 1: Identifying Multi-Remote Control Unit And Steering Member

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 3.

NG: Replace mass air flow sensor (with intake air temperature sensor).

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

Refer to "WIRING DIAGRAM ".

INSPECTION END
