Overall Sequence

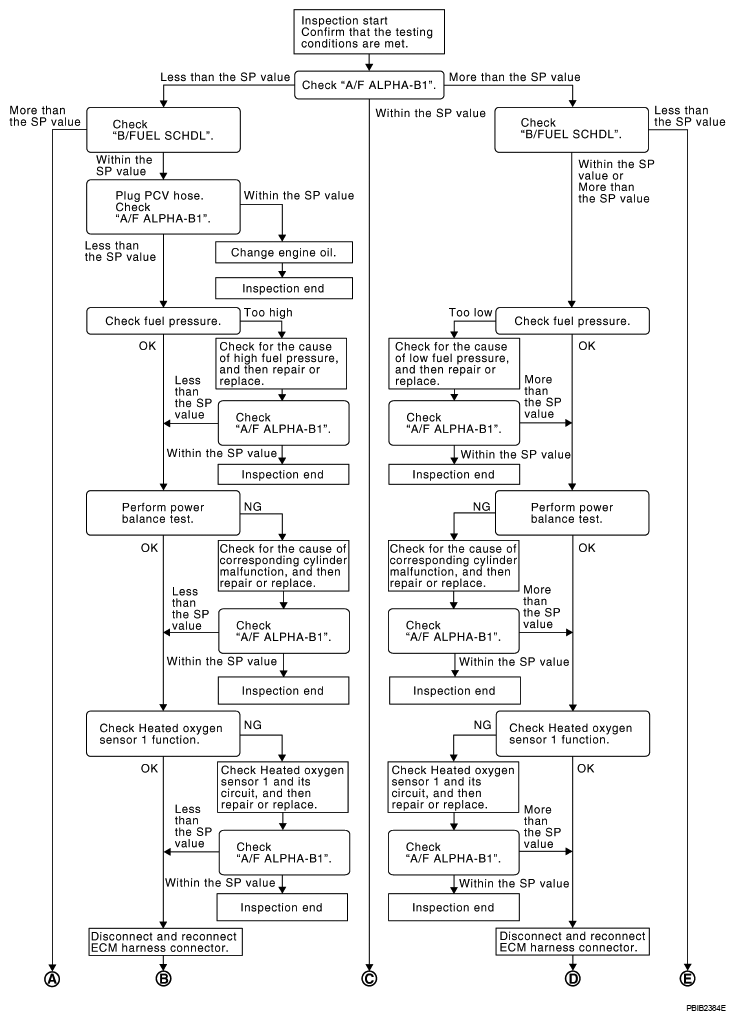

Fig 1: Trouble Diagnosis Function Chart (1 Of 2)
G06152342Courtesy of NISSAN MOTOR CO., U.S.A.

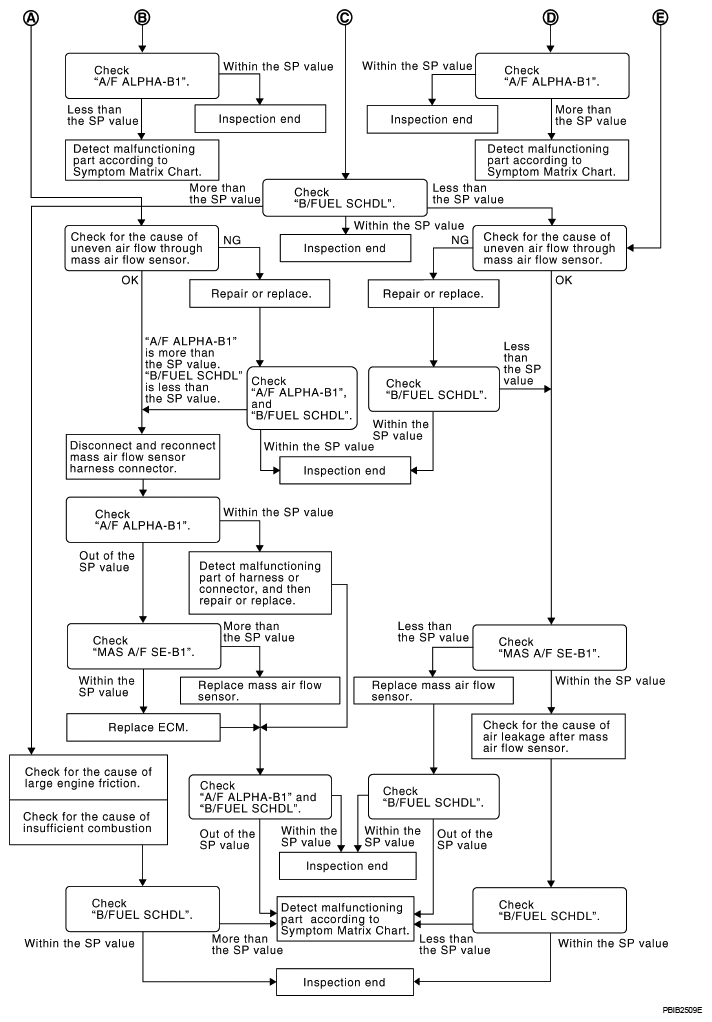

Fig 2: Trouble Diagnosis Function Chart (2 Of 2)
G06152343Courtesy of NISSAN MOTOR CO., U.S.A.
