Home >> Nissan-Datsun >> 2007 >> X-Trail LE >> Repair and Diagnosis >> Steering >> Power Steering System >> Steering Column >> Disassembly and Assembly >> Component
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Disassembly and Assembly: Component

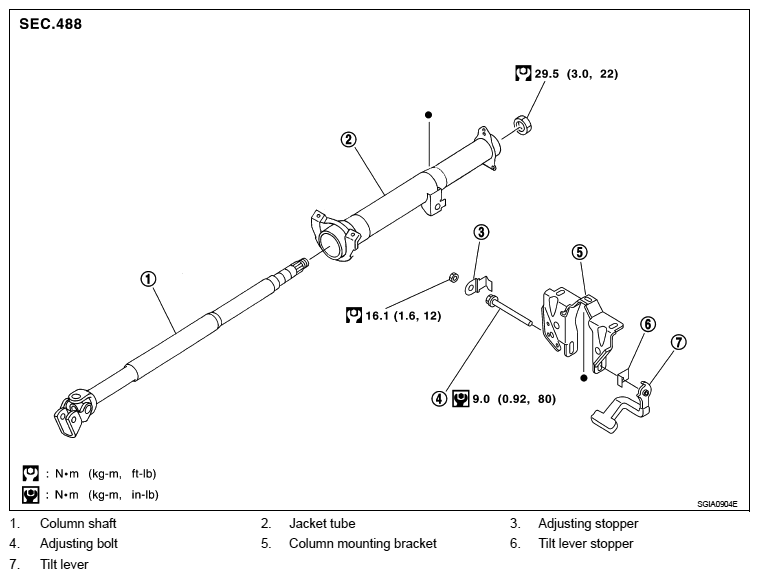

Fig 1: Steering Column Replacement Components With Torque Specifications
G06153814Courtesy of NISSAN MOTOR CO., U.S.A.
