System - Engine Mechanical & Other

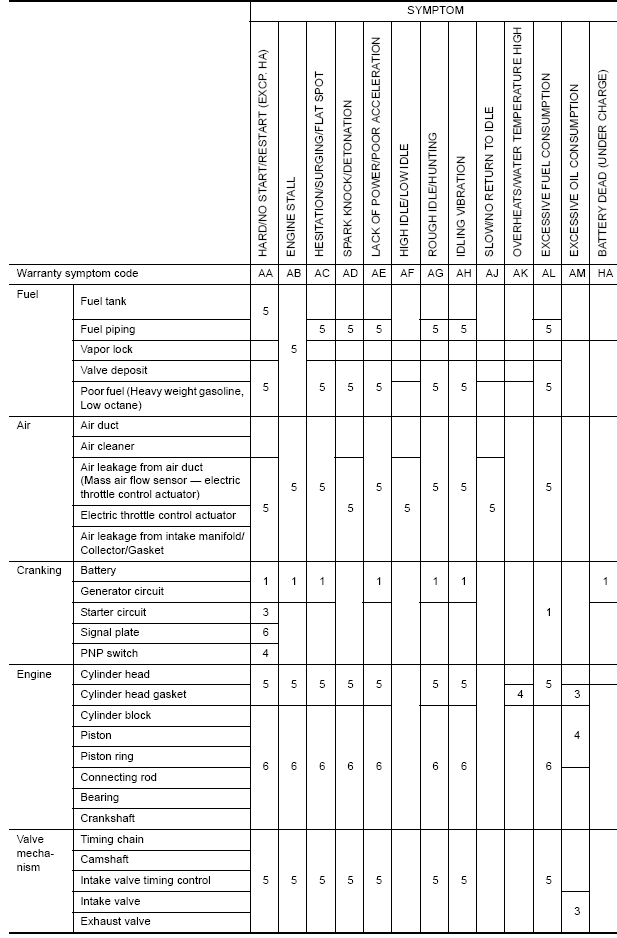

Fig 1: Engine Mechanical & Other Symptom Chart (1 Of 2)
G05369335

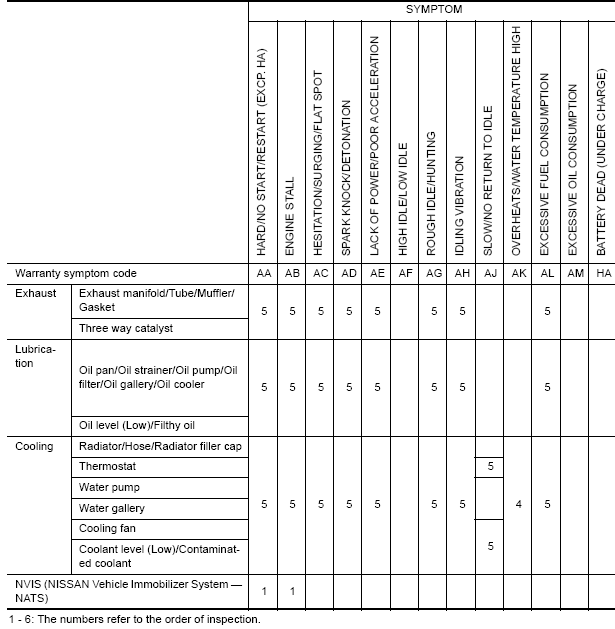

Fig 2: Engine Mechanical & Other Symptom Chart (2 Of 2)
G05369336
