Exploded View: Disassembly
Type: LR1110-713C

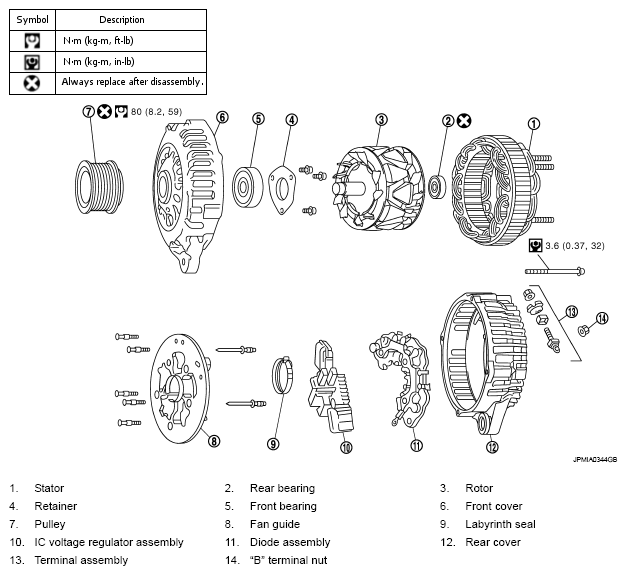

Fig 1: Exploded View Of Alternator With Torque Specifications
