Component Parts Location

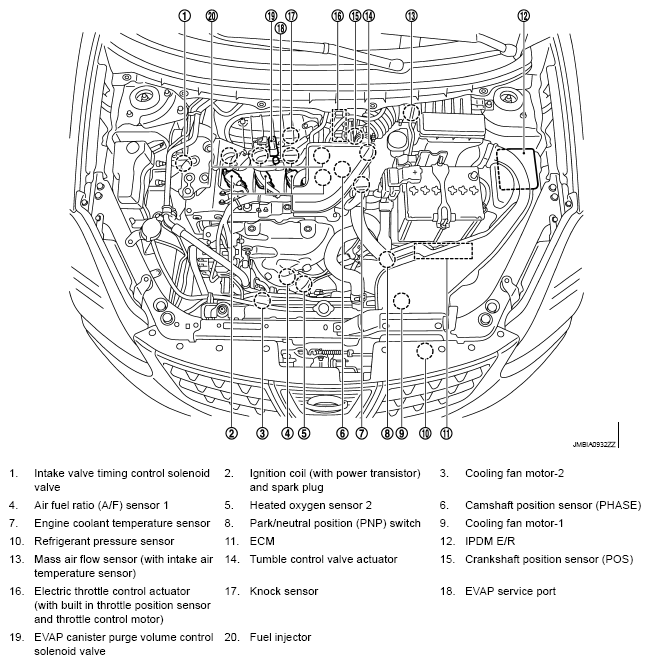

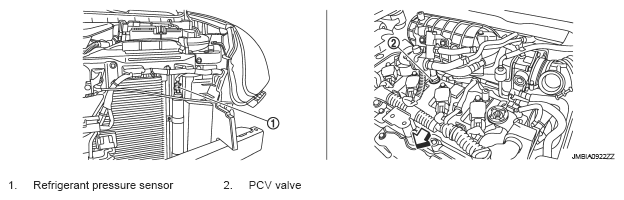

Fig 1: Identifying Evaporative Emission System Components Location (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

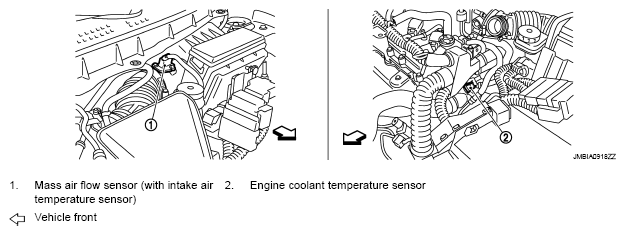

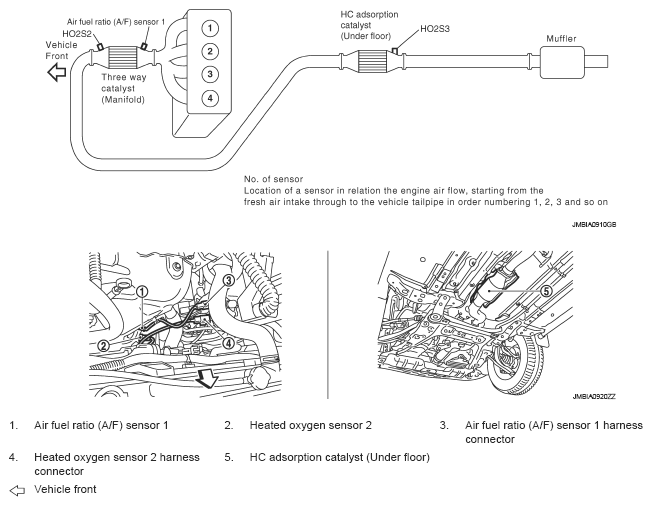

Fig 2: Identifying Evaporative Emission System Components Location (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

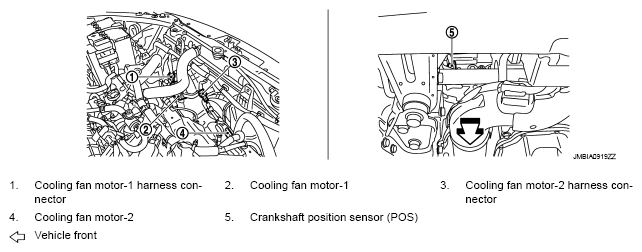

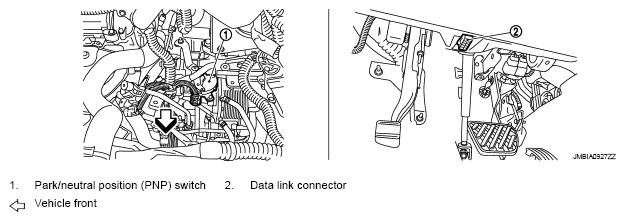

Fig 3: Identifying Evaporative Emission System Components Location (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

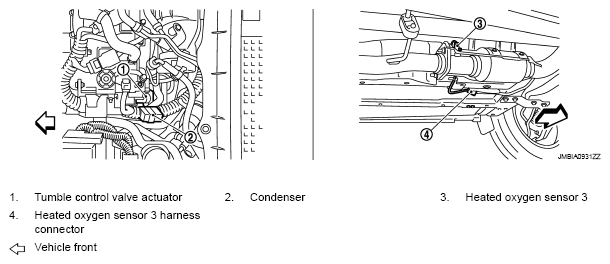

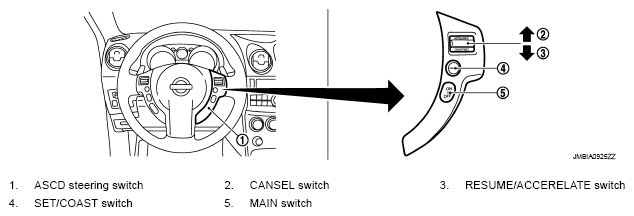

Fig 4: Identifying Evaporative Emission System Components Location (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

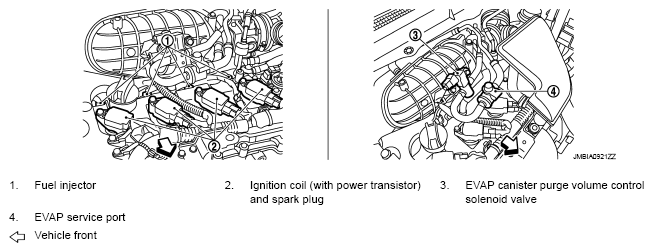

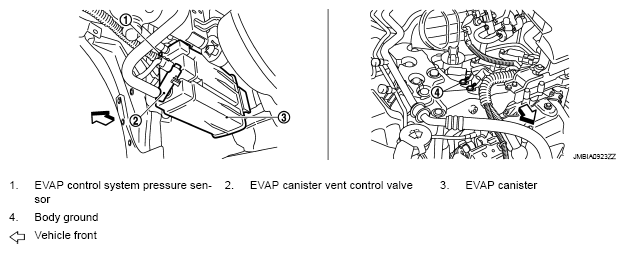

Fig 5: Identifying Evaporative Emission System Components Location (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

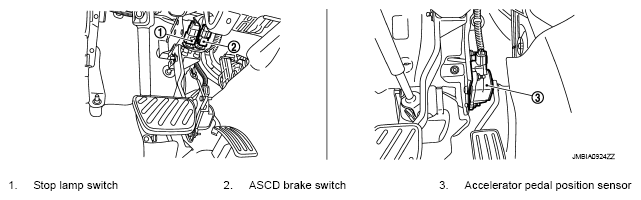

Fig 6: Identifying Evaporative Emission System Components Location (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

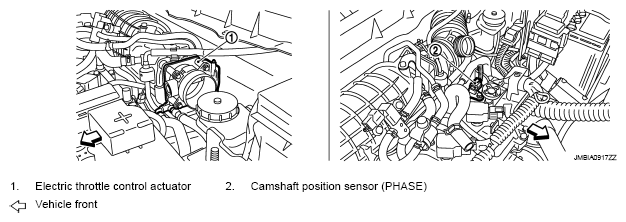

Fig 7: Identifying Evaporative Emission System Components Location (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

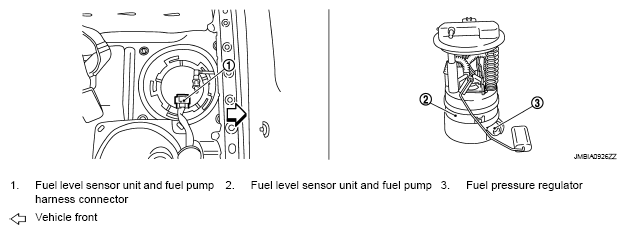

Fig 8: Identifying Evaporative Emission System Components Location (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Evaporative Emission System Components Location (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Evaporative Emission System Components Location (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Evaporative Emission System Components Location (11 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Evaporative Emission System Components Location (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Evaporative Emission System Components Location (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
