Integrated Display System: Schematic

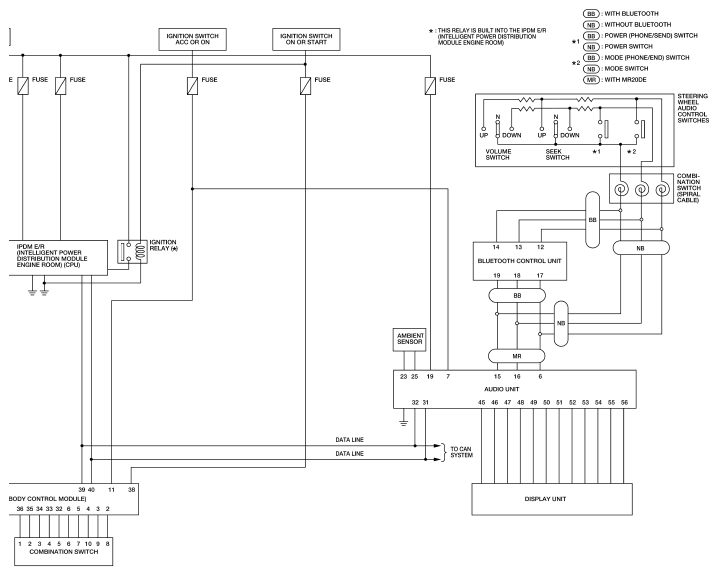

Fig 1: Integrated Display System - Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
