System Diagram

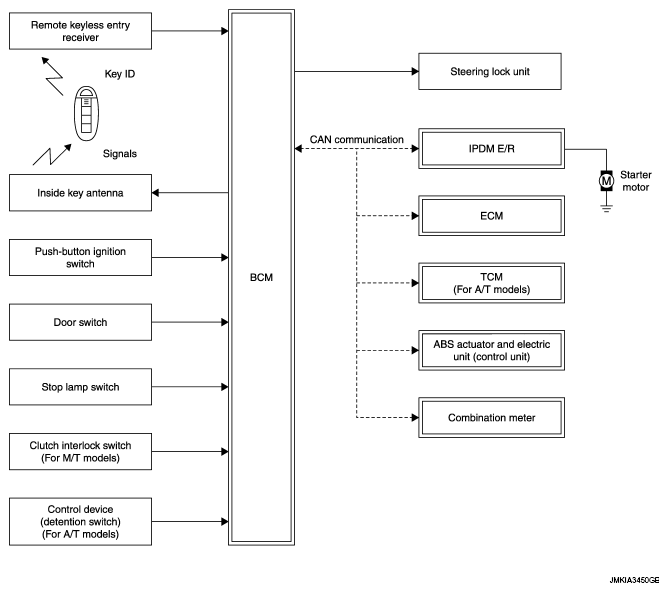

Fig 1: Intelligent Key System/Engine Start Function - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
