Exploded View: Disassembly

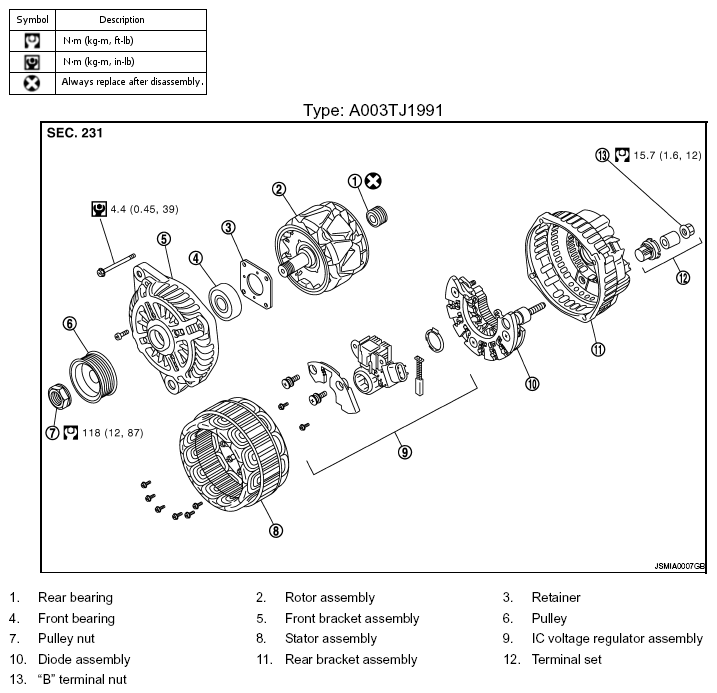

Fig 1: Disassembling View Of Alternator With Torque Specifications
G06053672Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
