Connector Identification

Use the chart below to find out what each wiring diagram code stands for.

CONNECTOR & WIRING DIAGRAM NAME CHART

Connector ID.	Wiring Diagram Name	Refer to
B	Body Harness/Driver's Side (Connectors B1 - B154)	Fig 6
B	Body No. 2 Harness/Passenger's Side (Connectors B201 - B353)	Fig 7
D	Door Harness Driver's Side (Connectors D1 - D24)	Fig 9
D	Door Harness Passenger's Side (Connectors D31 - D54)	Fig 10
E	Engine Room Harness	Fig 2, Fig 3
F	Engine Controls Harness	Fig 4,Fig 5
M	Main Harness Dash/Center Console	Fig 1
R	Roof Harness	Fig 8

Fig 1: Dash, Kick Panels & Center Console - Wiring Harness

G00471170

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Compartment - Wiring Harness

G00471171

Courtesy of NISSAN MOTOR CO., U.S.A.

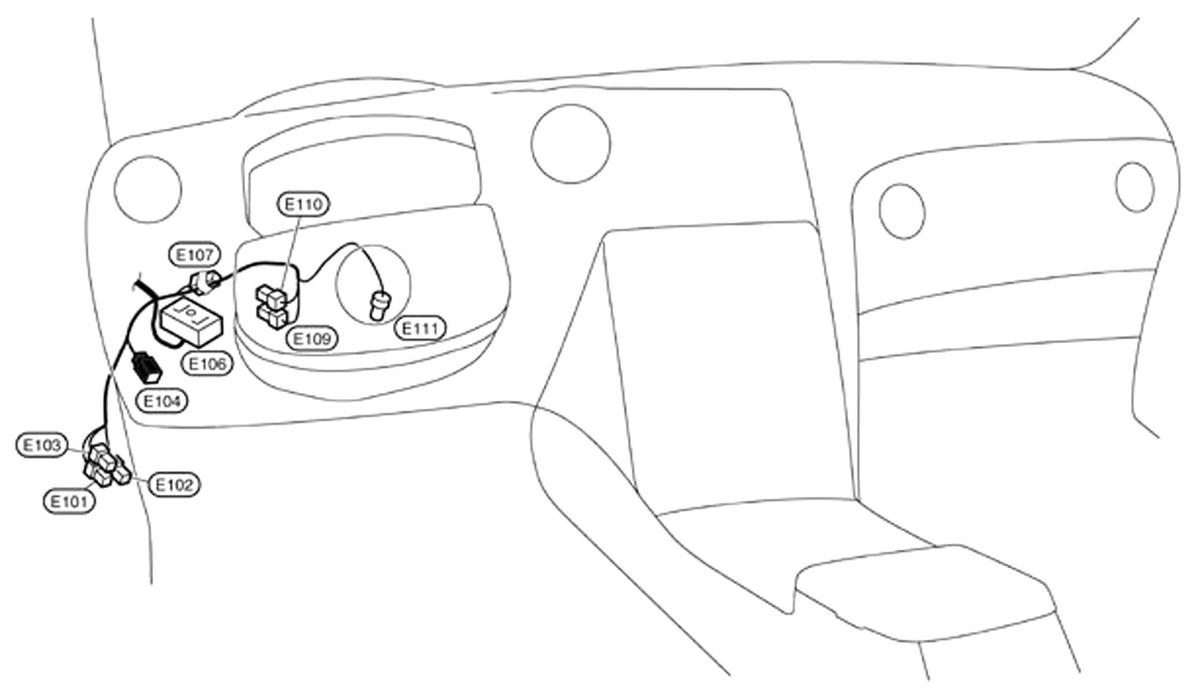

Fig 3: Left End Of Dash - Wiring Harness

G00471172

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Engine - Wiring Harness

G00471173

Courtesy of NISSAN MOTOR CO., U.S.A.

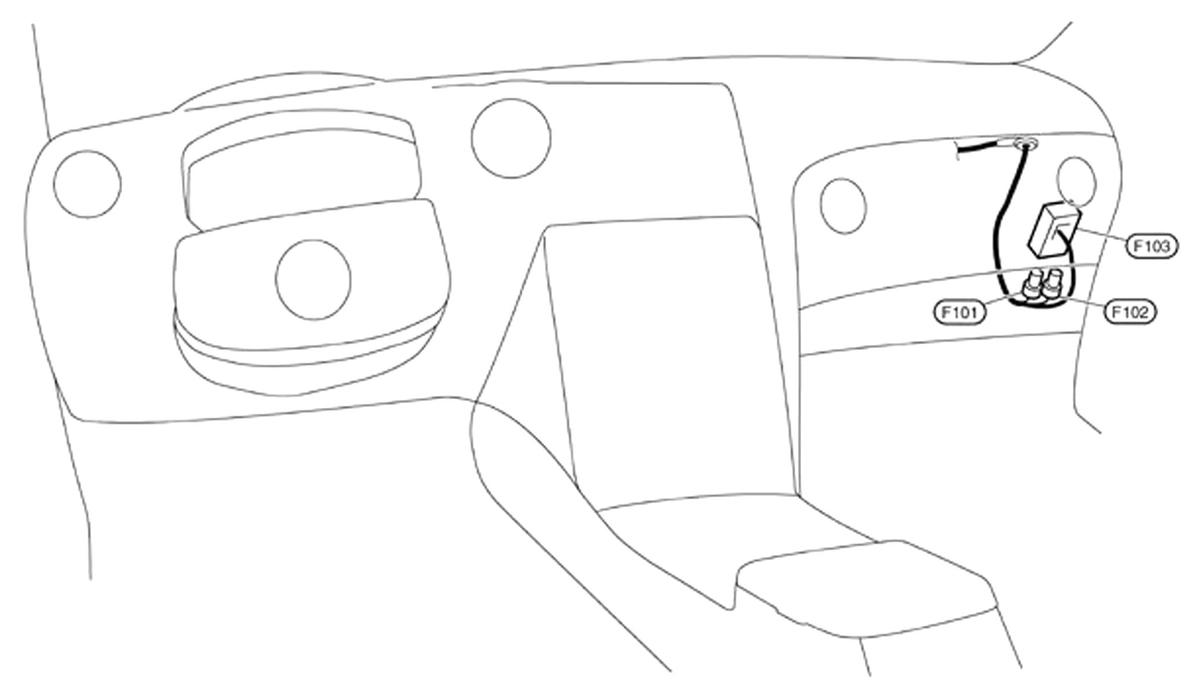

Fig 5: Right End Of Dash - Wiring Harness

G00471174

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Left Side Of Vehicle - Wiring Harness

G00471175

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Right Side Of Vehicle - Wiring Harness

G00471176

Courtesy of NISSAN MOTOR CO., U.S.A.

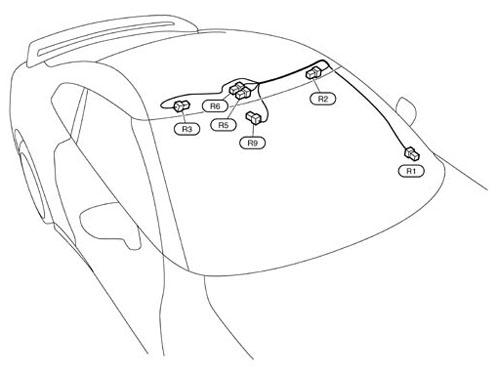

Fig 8: Front Of Roof - Wiring Harness

G00471177

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Driver's Door - Wiring Harness

G00471178

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Front Passenger's Door - Wiring Harness

G00471179

Courtesy of NISSAN MOTOR CO., U.S.A.
