Auxiliary Input System

• Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
• Operation can be performed with multifunction switch and steering switch. Multifunction switch transmits operation signal to AV control unit by AV communication.

Without DVD Entertainment System

• The AUX image signal is input from the auxiliary input jacks to the AV control unit. The AV control unit outputs AUX image signal to the front display unit.
• The AUX sound signal is input from the auxiliary input jacks to the AV control unit. The AV control unit outputs the AUX sound signal to BOSE amp. The BOSE amp. outputs the AUX sound signal to woofer and each speaker.

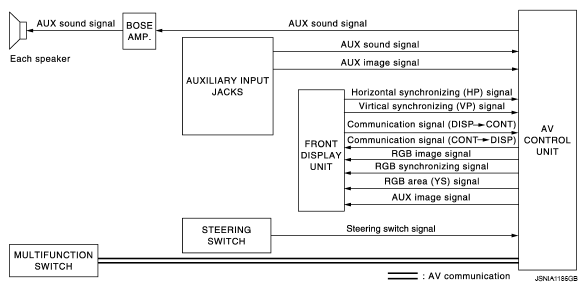

Fig 1: Auxiliary Input System Diagram (Without DVD Entertainment System)

Courtesy of NISSAN MOTOR CO., U.S.A.

With DVD Entertainment System

• The AUX sound signal input from the external input device is transmitted from auxiliary input jacks to DVD player. DVD player transmits it to AV control unit. AV control unit transmits the AUX sound signal to BOSE amp. The BOSE amp. outputs the AUX sound signal to woofer and each speaker.
• The AUX image signal input from the external input device is transmitted to the video distributor. The video distributor transmits the AUX image signal to the AV control unit and rear display unit.

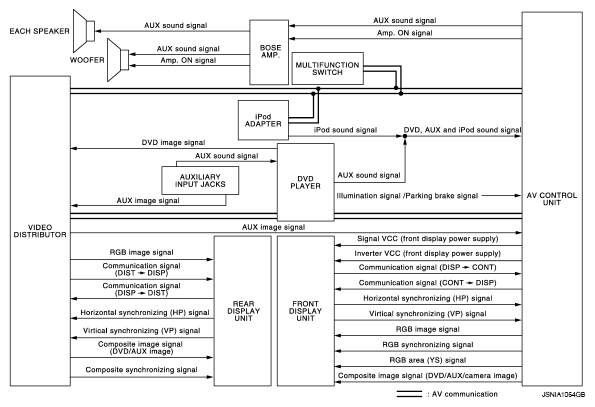

Fig 2: Auxiliary Input System Diagram (With DVD Entertainment System)

Courtesy of NISSAN MOTOR CO., U.S.A.
