Exploded View

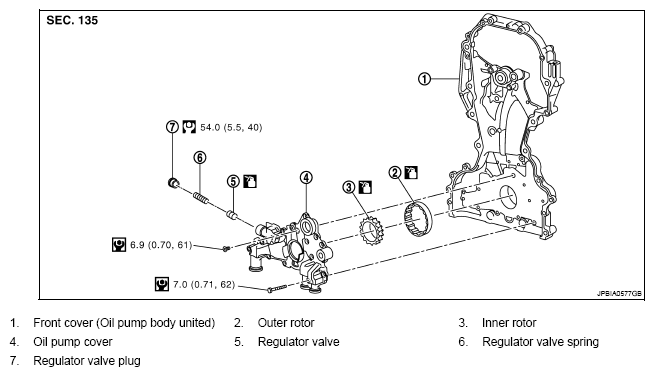

Fig 1: Identifying Oil Pump, Regulator Valve Spring, And Outer Rotor
G06057768Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
