Exploded View

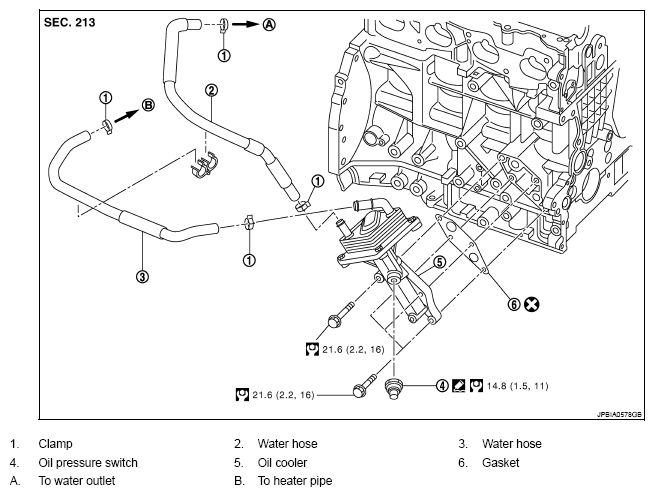

Fig 1: Identifying Oil Pressure Switch, Oil Cooler And Water Hose
G06057767Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
