Preliminary Check

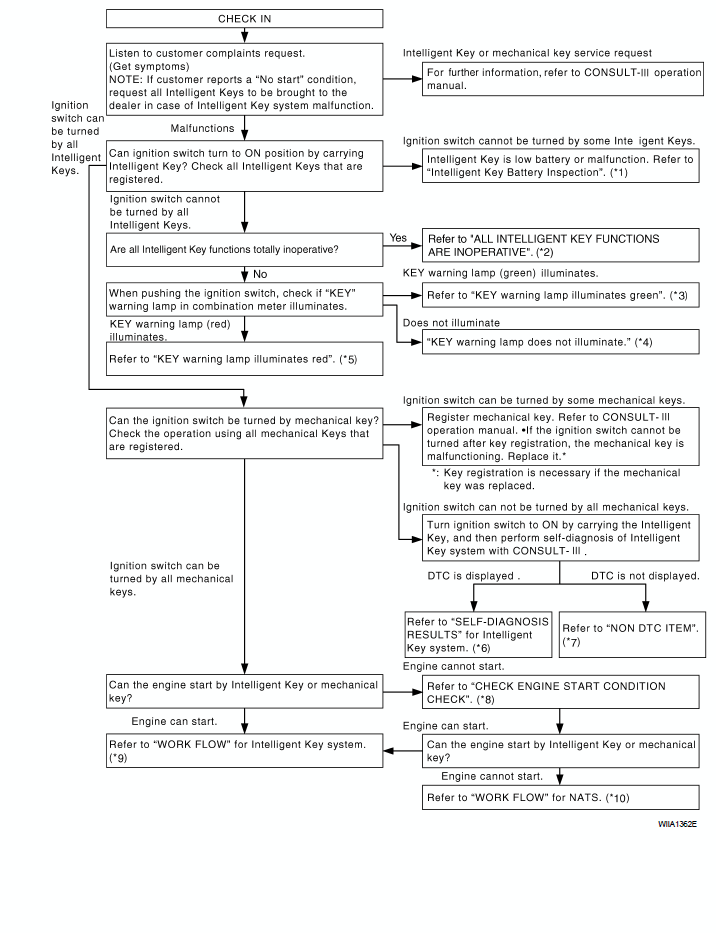

Fig 1: Trouble Diagnosis Flow Chart
G05924682Courtesy of NISSAN MOTOR CO., U.S.A.
*1: Intelligent Key Battery Replacement
*2: Trouble Diagnosis Symptom Chart
*3: Trouble Diagnosis Symptom Chart
*4: Trouble Diagnosis Symptom Chart
*5: Trouble Diagnosis Symptom Chart
*6: CONSULT-III Application Item
*7: Trouble Diagnosis Symptom Chart
*8: Trouble Diagnosis Symptom Chart
*9: WORK FLOW
*10: WORK FLOW
