Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

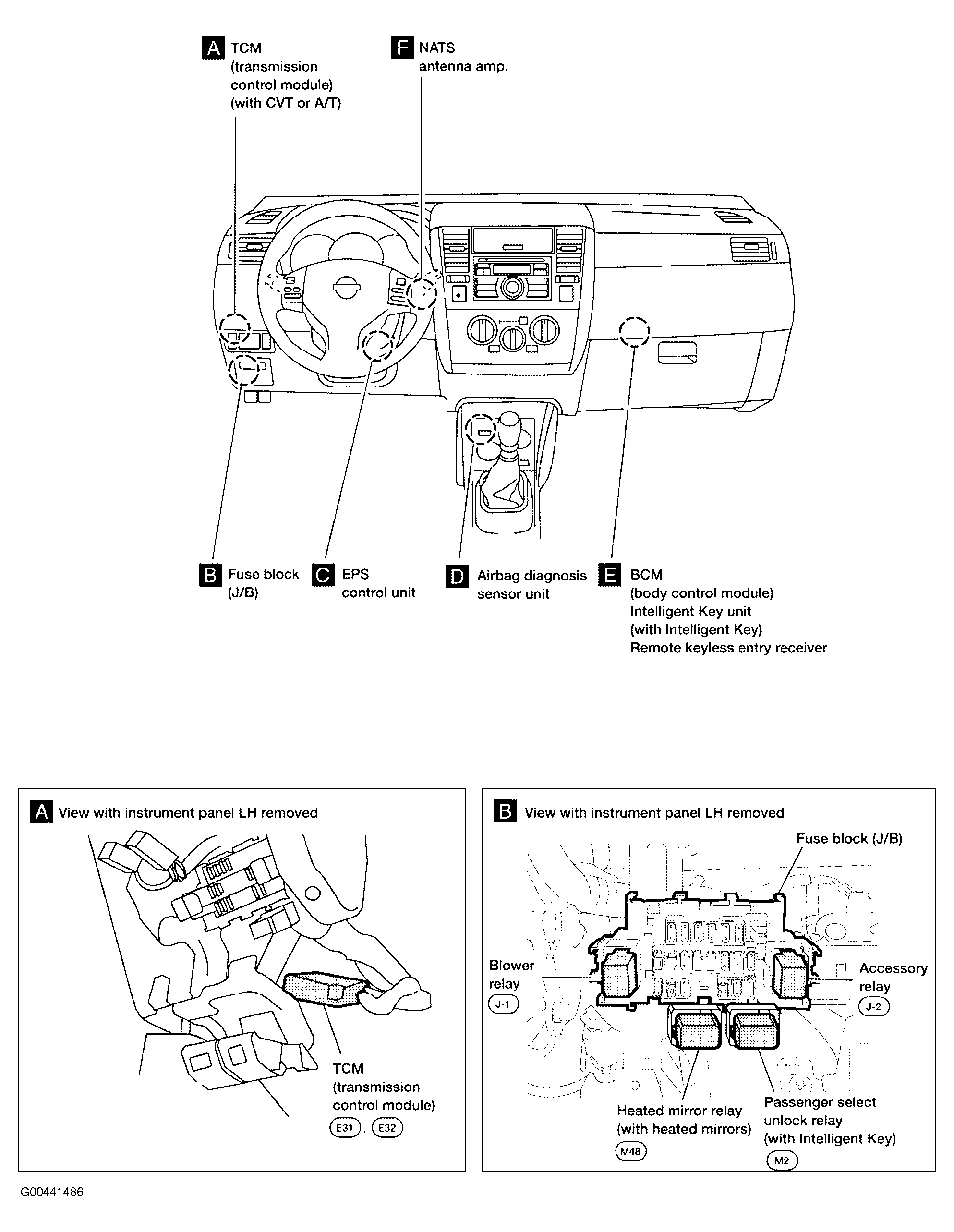

| Fuse Block (J/B) |
Under left end of dash. See Figure. |

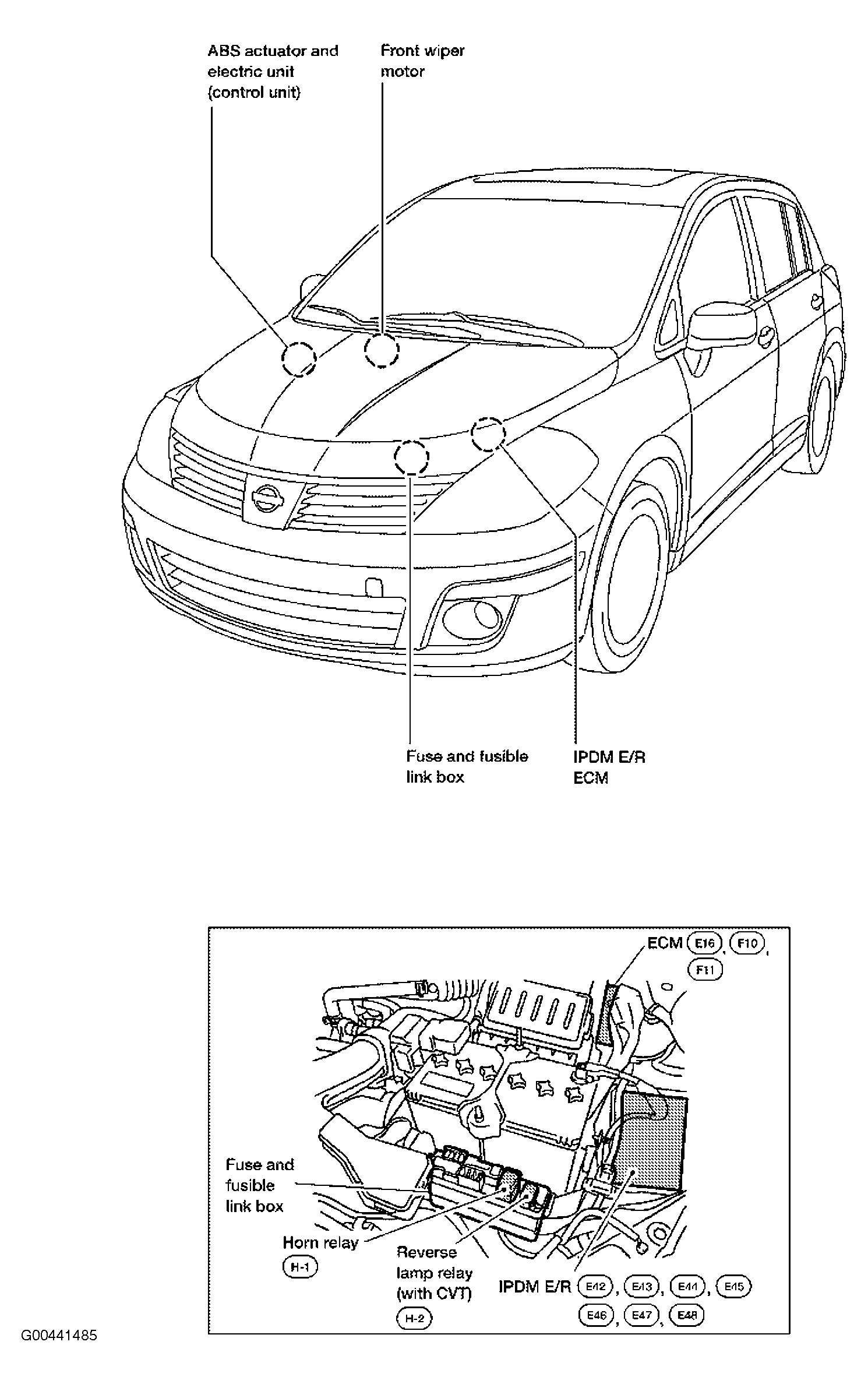

| Fuse & Fusible Link Box |
Left front of engine compartment. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) |
Left side of engine compartment. See Figure. |
