Exploded View

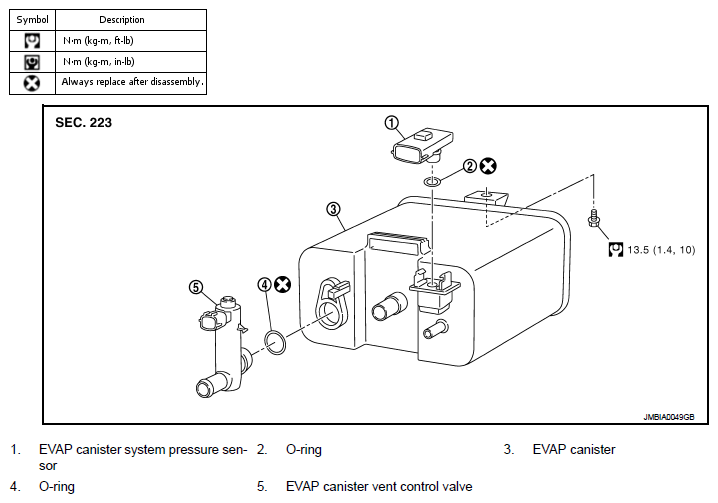

Fig 1: EVAP Canister Replacement Components With Torque Specifications
G06576638Courtesy of NISSAN MOTOR CO., U.S.A.
