System - Basic Engine Control System

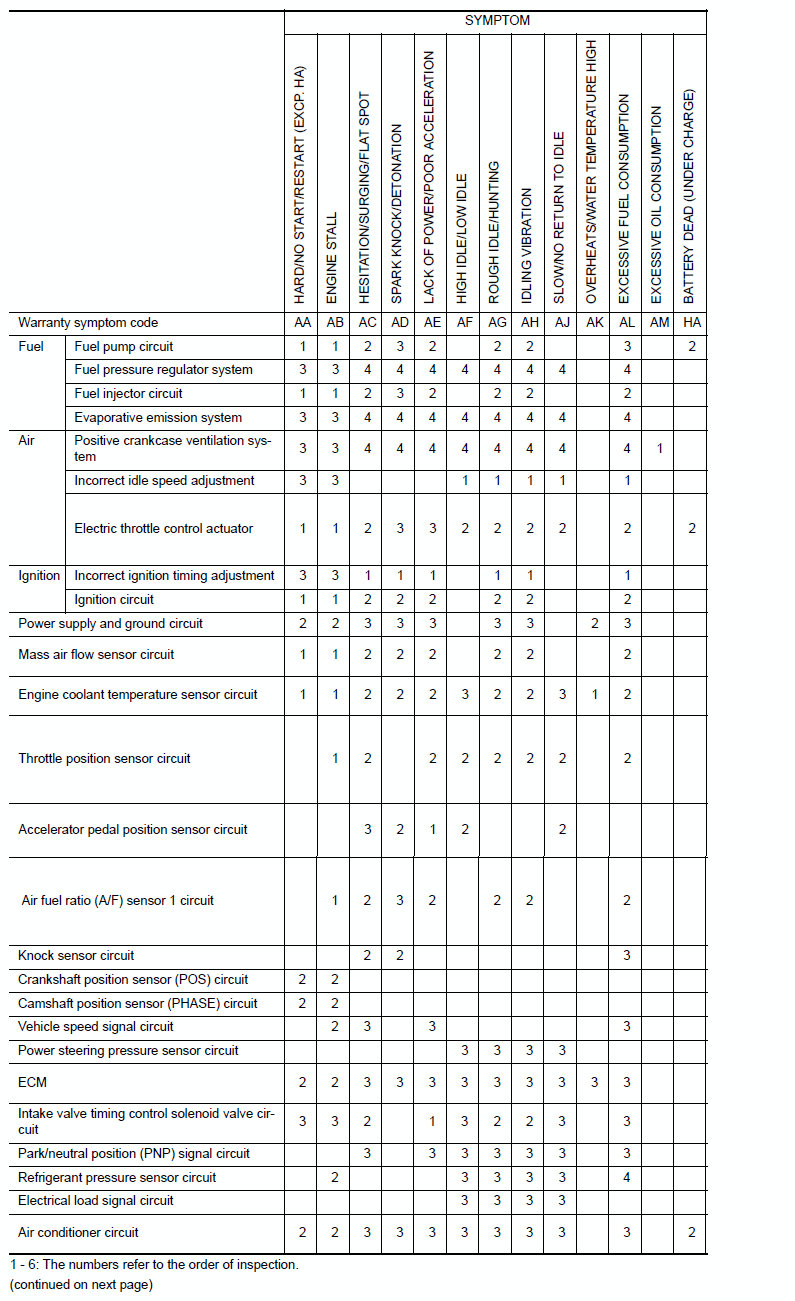

Fig 1: Symptom Matrix Chart - Basic Engine Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
