Auxiliary Input System

WARNING: This page is about a different car, the 2009 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
Operation can be performed with multifunction switch and steering switch. Multifunction switch transmits operation signal to AV control unit by AV communication.
The AUX image signal is input from the auxiliary input jacks to the front display unit.
The AUX sound signal is input from the auxiliary input jacks to the AV control unit. The AV control unit outputs the AUX sound signal to the BOSE amp. The BOSE amp. outputs the AUX sound signal to woofer and each speaker.

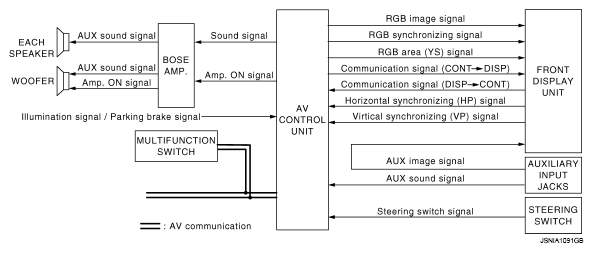

Fig 1: Woofer And Speaker System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
