Wiring Diagram - CVT - ODSW
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagram - CVT - ODSW: Notes

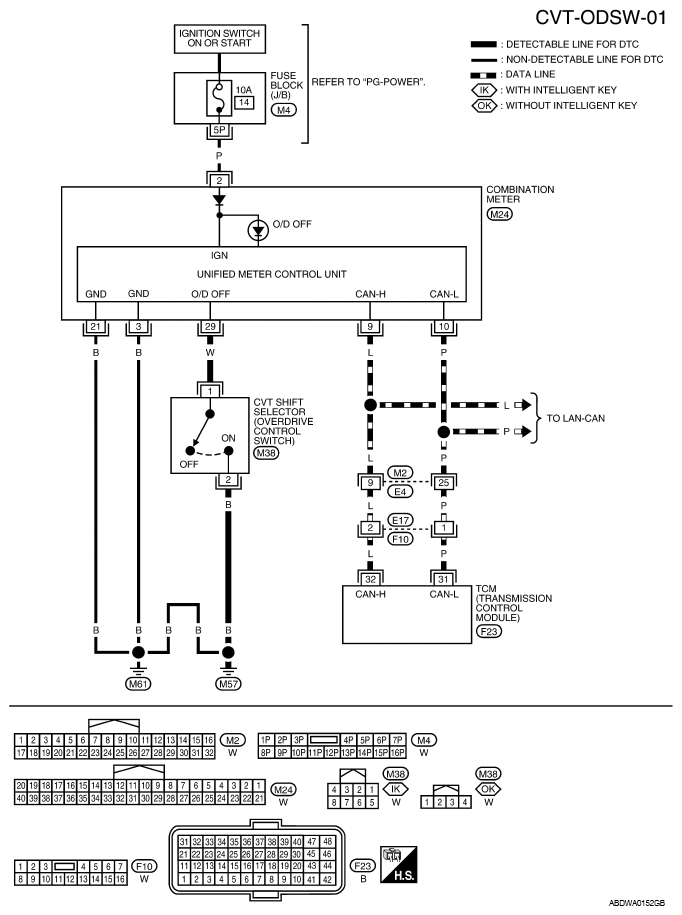

Fig 1: Wiring Diagram - CVT-ODSW-01
Courtesy of NISSAN MOTOR CO., U.S.A.
