System Diagram

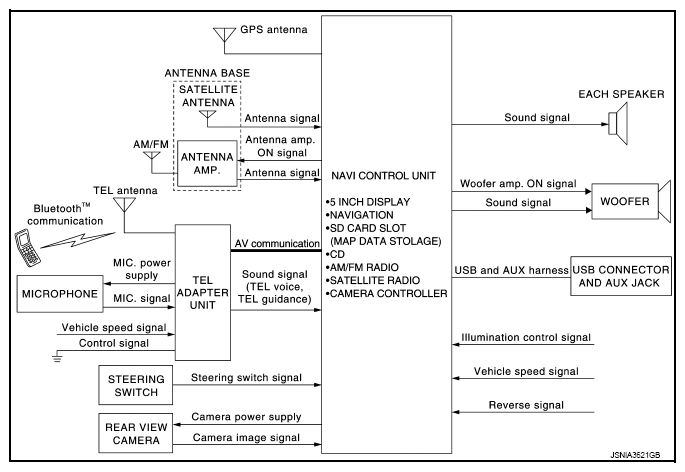

Fig 1: Audio - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
Fig 2: Radio And Satellite Radio Antenna Signal Communication Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
