Component Parts Location

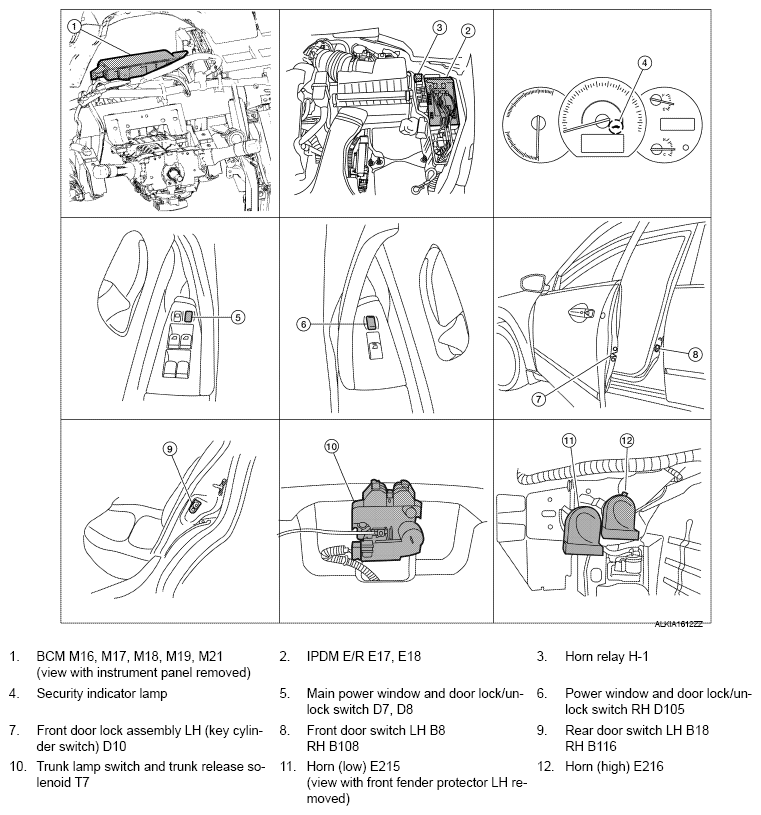

Fig 1: Identifying Vehicle Security System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
