Evaporative Emission Line Drawing

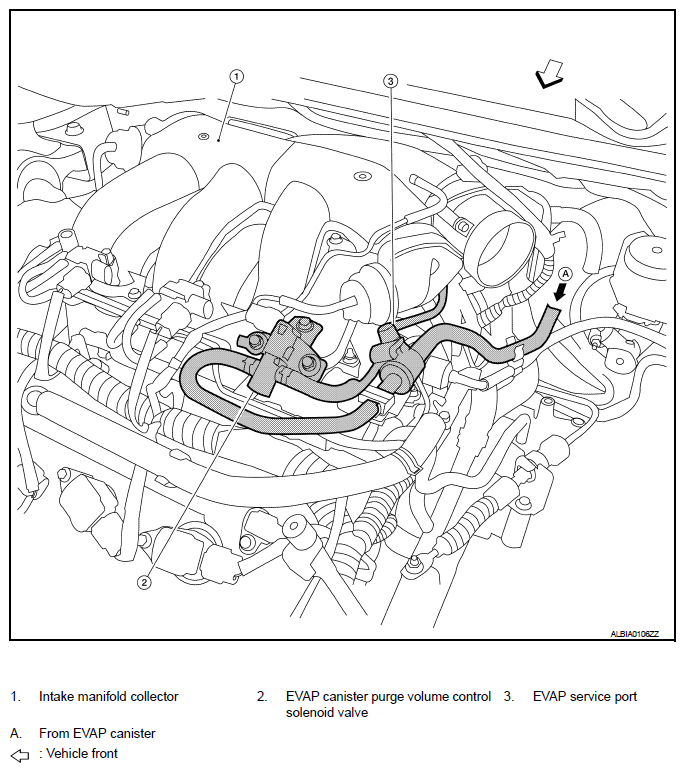

Fig 1: Identifying Evaporative Emission Line Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.

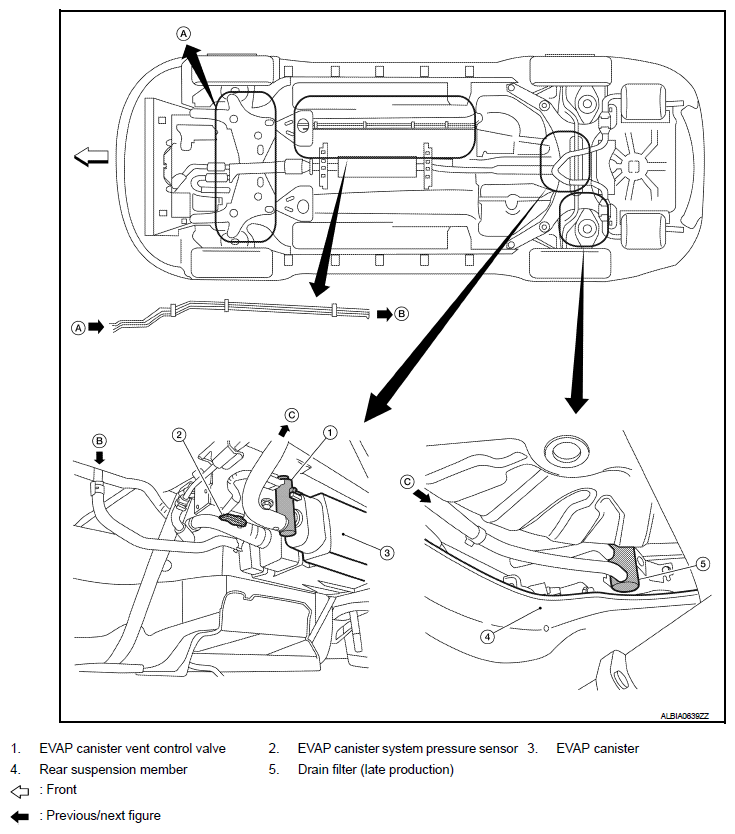

Fig 2: Identifying Evaporative Emission System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
