Component Parts Location

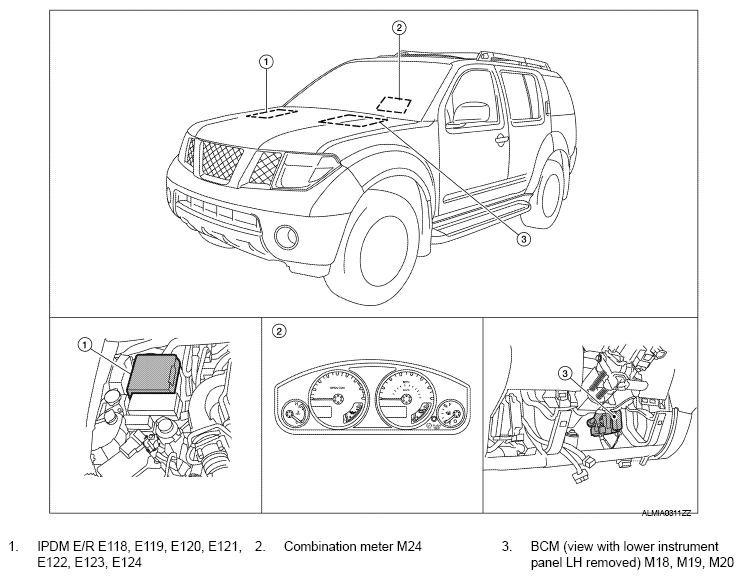

Fig 1: Location of Power Consumption Control System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
