Wiring Diagram - Intelligent Key -

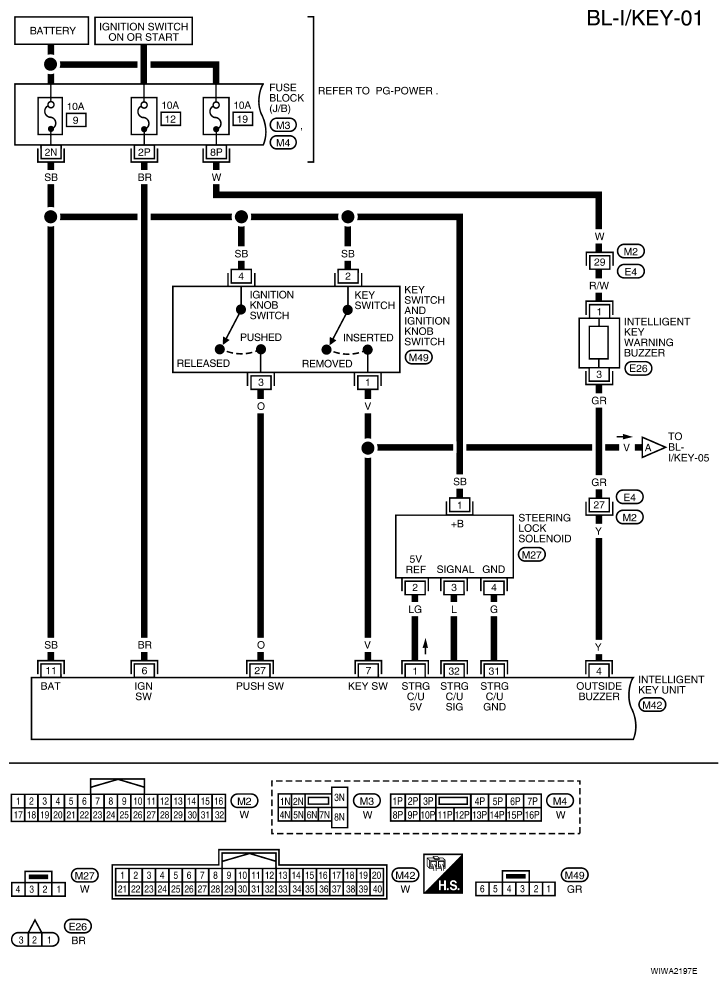

Fig 1: Wiring Diagram - BL-I/KEY-01

G07140373

Courtesy of NISSAN MOTOR CO., U.S.A.

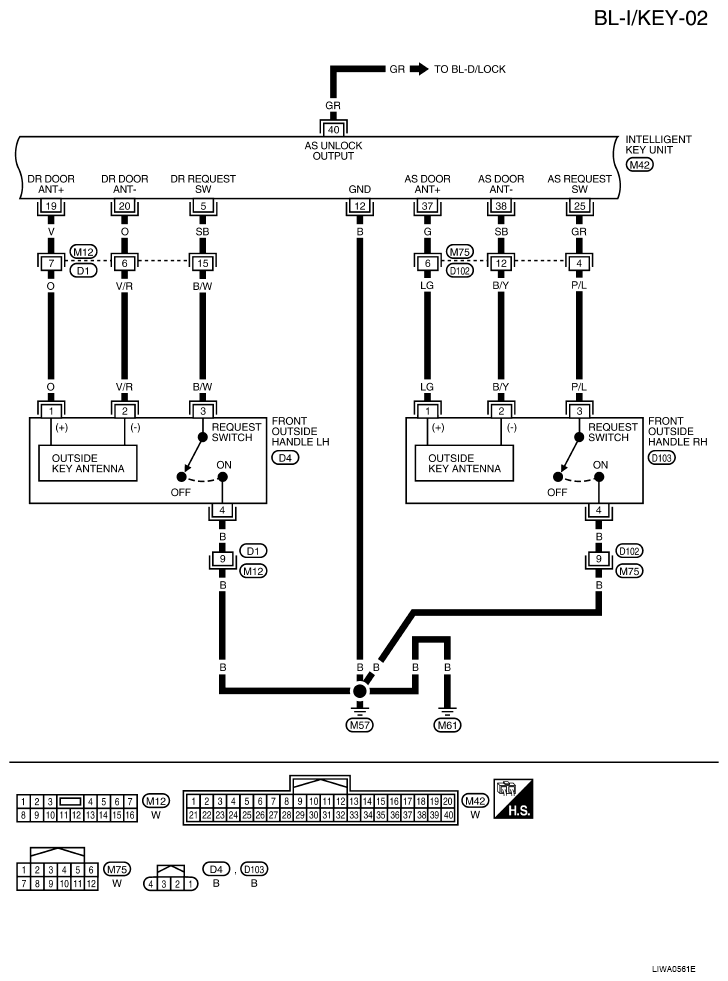

Fig 2: Wiring Diagram - BL-I/KEY-02

G07140374

Courtesy of NISSAN MOTOR CO., U.S.A.

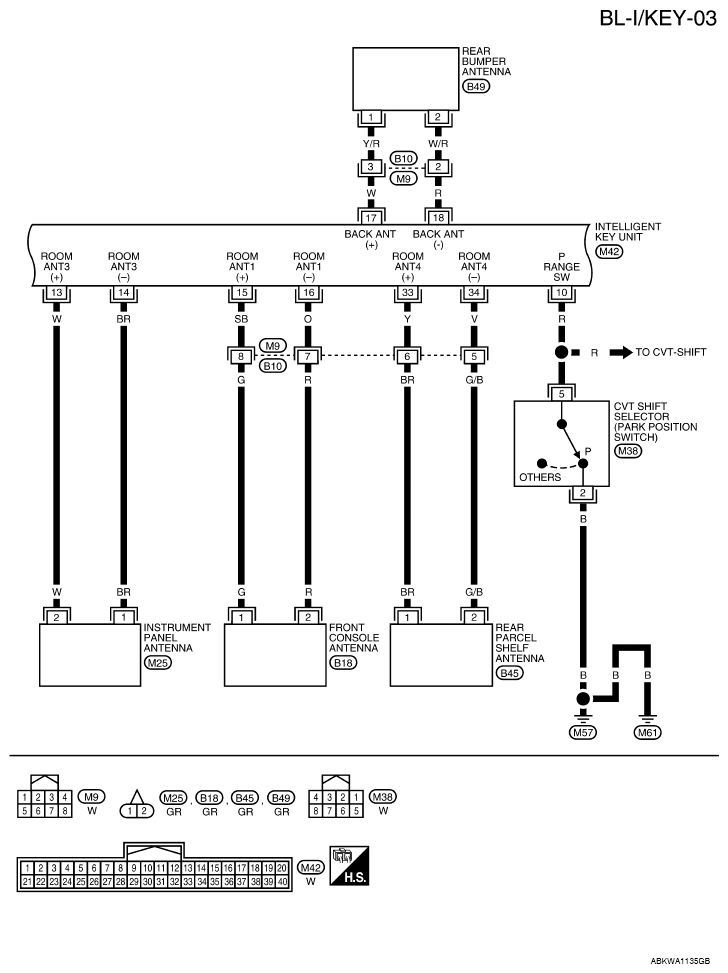

Fig 3: Wiring Diagram - BL-I/KEY-03

G07140375

Courtesy of NISSAN MOTOR CO., U.S.A.

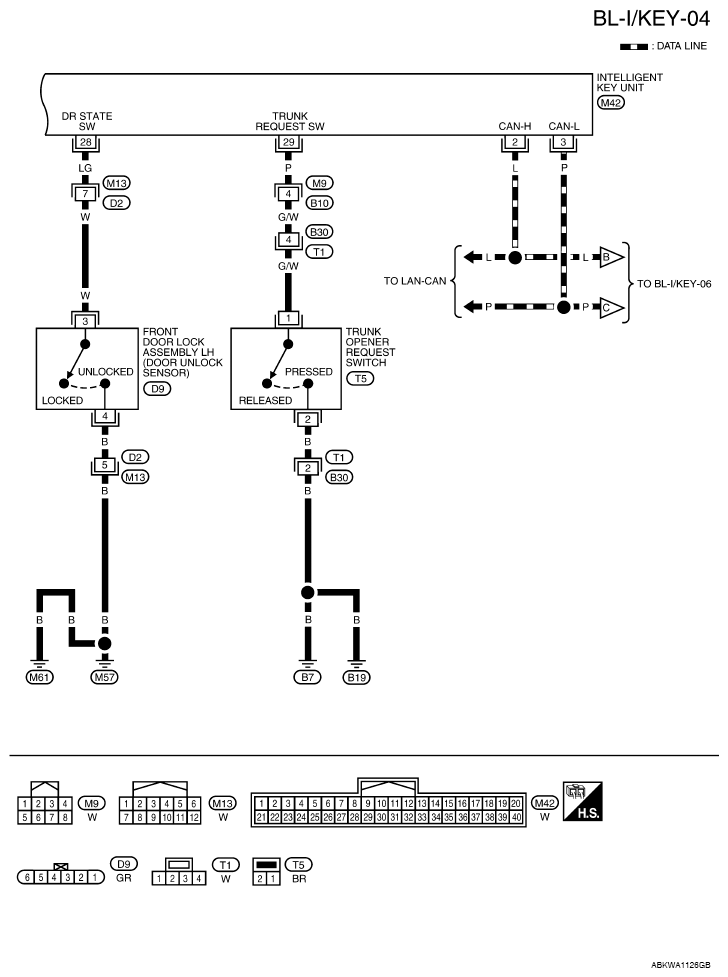

Fig 4: Wiring Diagram - BL-I/KEY-04

G07140376

Courtesy of NISSAN MOTOR CO., U.S.A.

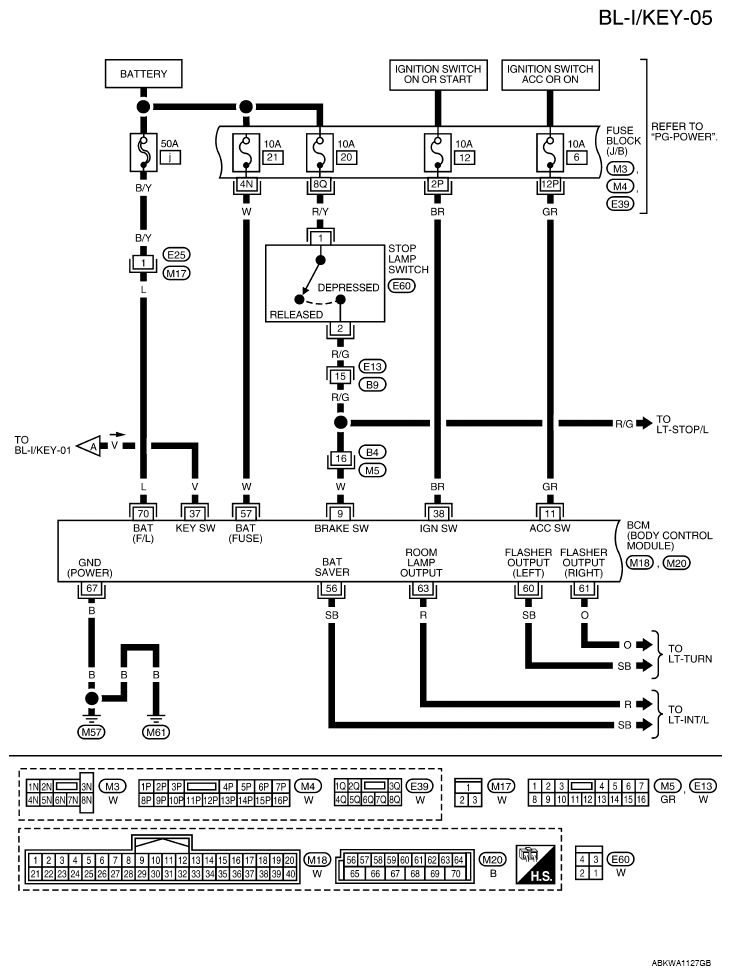

Fig 5: Wiring Diagram - BL-I/KEY-05

G07140377

Courtesy of NISSAN MOTOR CO., U.S.A.

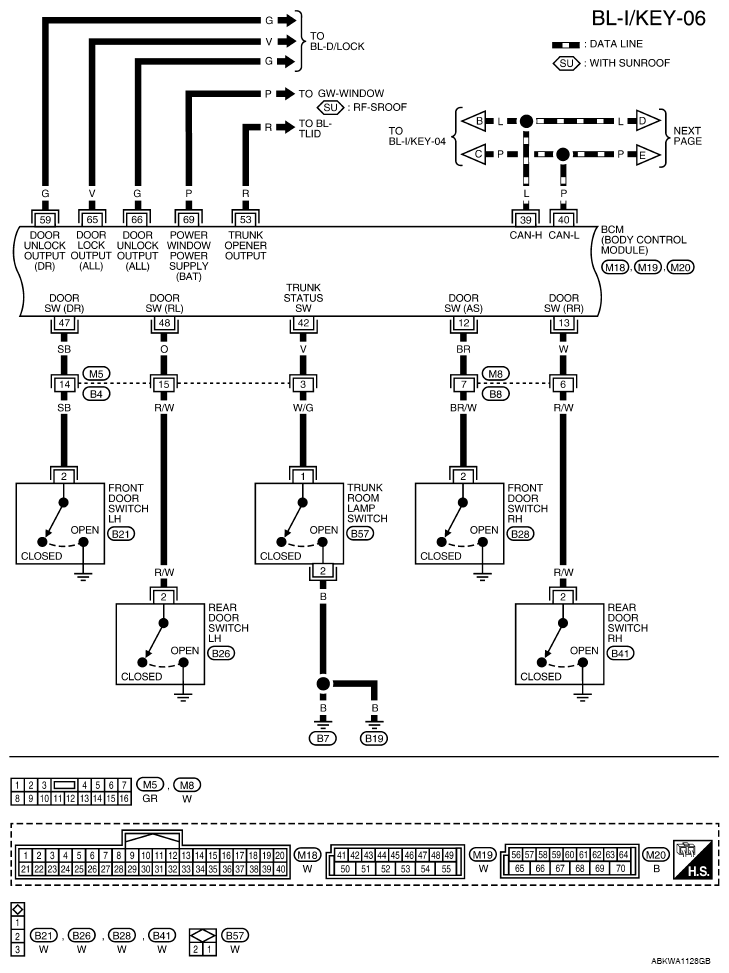

Fig 6: Wiring Diagram - BL-I/KEY-06

G07140378

Courtesy of NISSAN MOTOR CO., U.S.A.

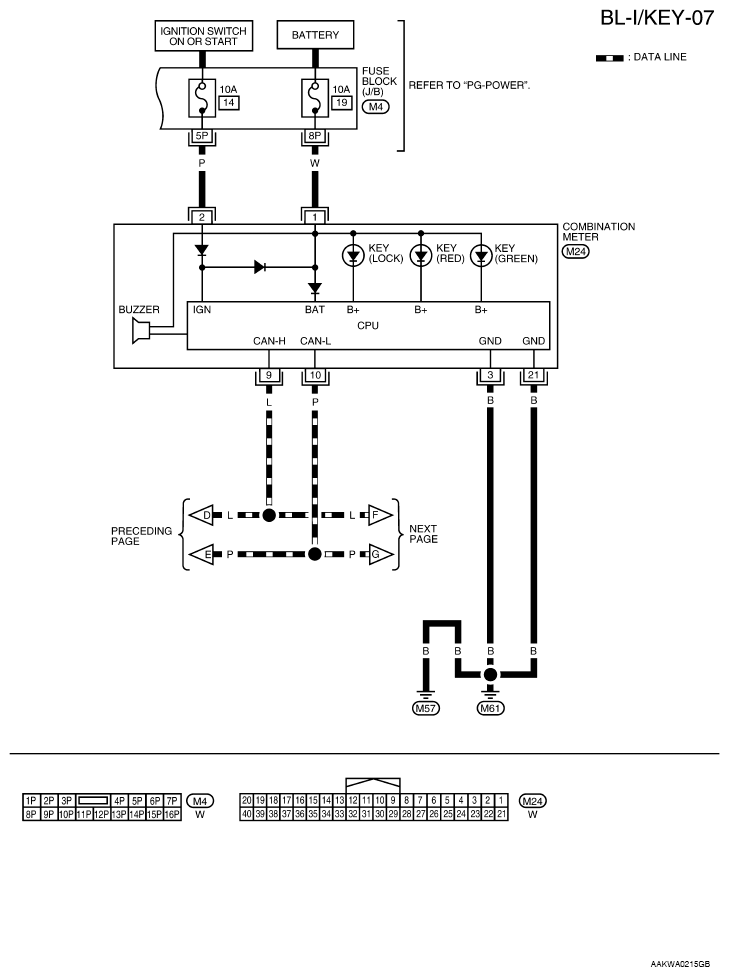

Fig 7: Wiring Diagram - BL-I/KEY-07

G07140379

Courtesy of NISSAN MOTOR CO., U.S.A.

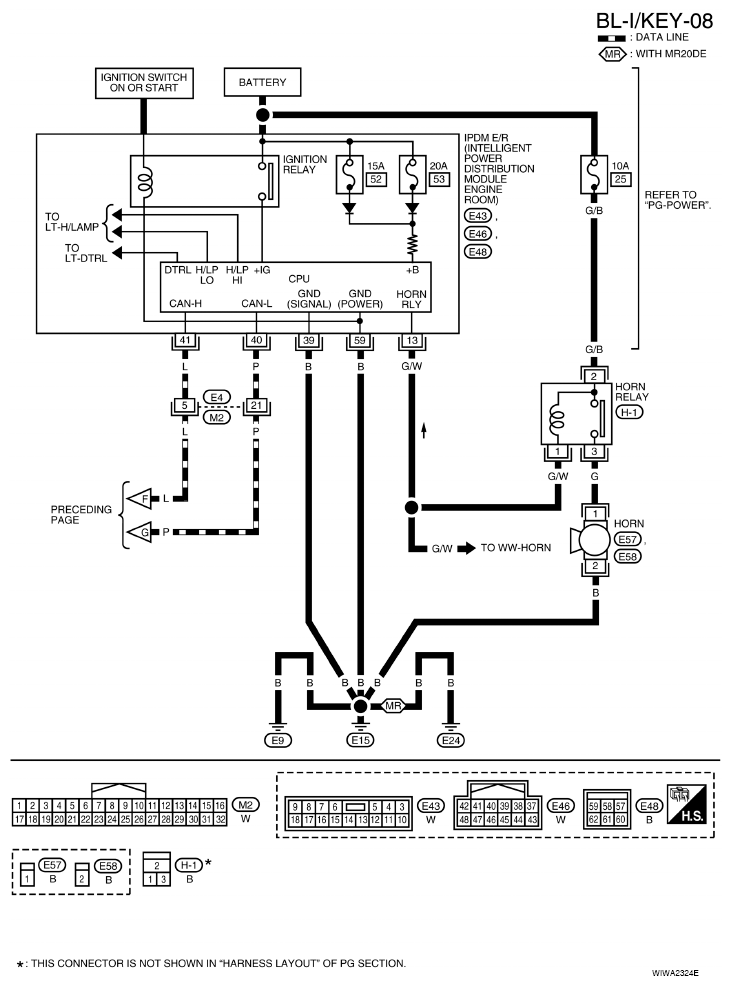

Fig 8: Wiring Diagram - BL-I/KEY-08

G07140380

Courtesy of NISSAN MOTOR CO., U.S.A.
