DTC P0101 MAF Sensor: Wiring Diagram

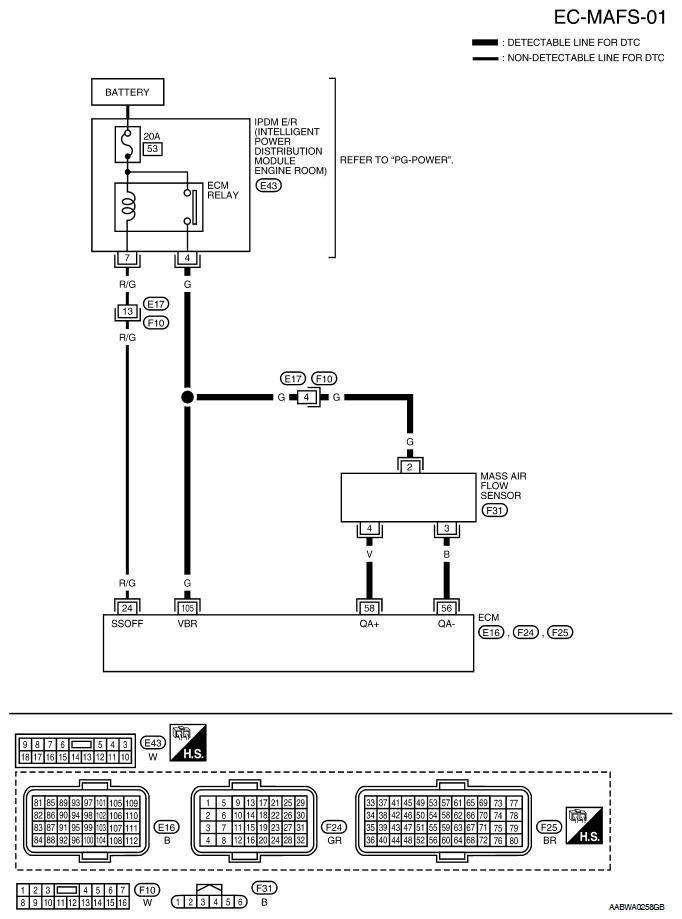

Fig 1: EC-MAFS-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINAL AND WIRE COLOR REFERENCE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
24	R/G	ECM relay (Self shut-off)	[Engine is running] [Ignition switch: OFF] For a few seconds after turning ignition switch OFF	0 - 1.0 V
24	R/G	ECM relay (Self shut-off)	[Ignition switch: OFF] More than a few seconds after turning ignition switch OFF	BATTERY VOLTAGE (11 - 14 V)
56	B	Sensor ground	[Engine is running] Warm-up condition Idle speed	Approximately 0 V
58	V	Mass air flow sensor	[Engine is running] Warm-up condition Idle speed	0.9 - 1.1 V
58	V	Mass air flow sensor	[Engine is running] Warm-up condition Engine speed: 2, 500 RPM	1.4 - 1.7 V
105	G	Power supply for ECM	[Ignition switch: ON]	BATTERY VOLTAGE (11 - 14 V)
