Engine Control Component Parts Location

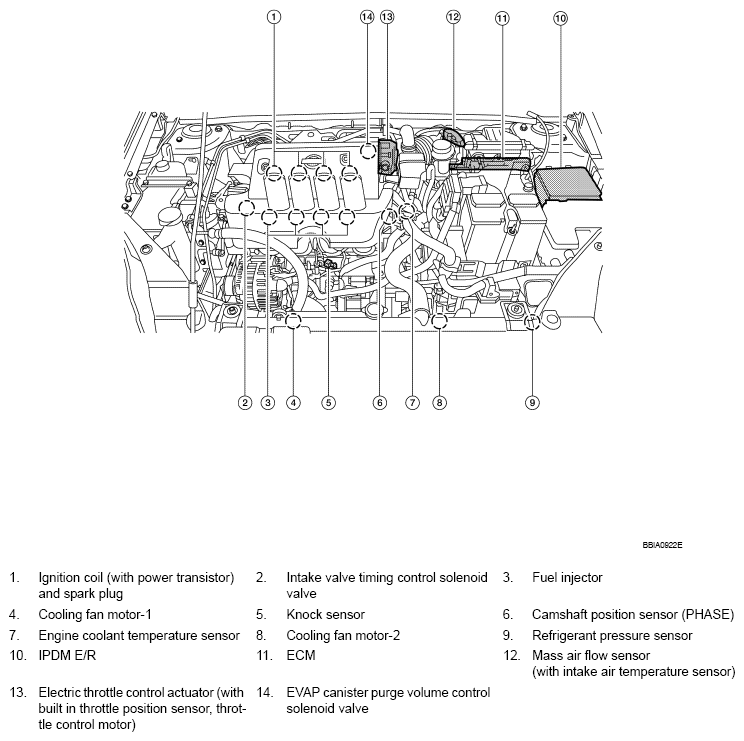

Fig 1: Location Of Engine Control Component Location (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

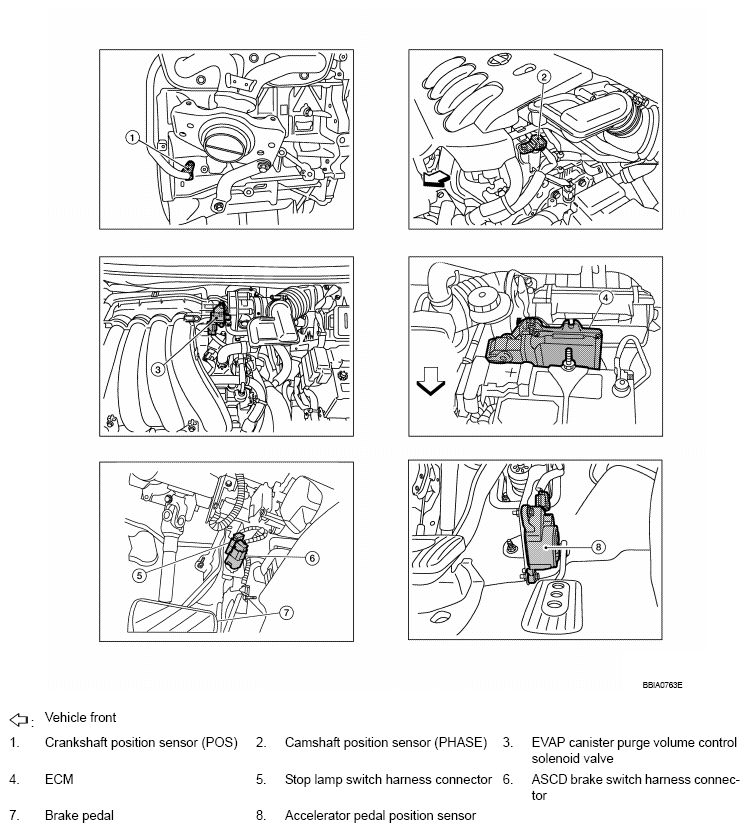

Fig 2: Location Of Engine Control Component Location (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

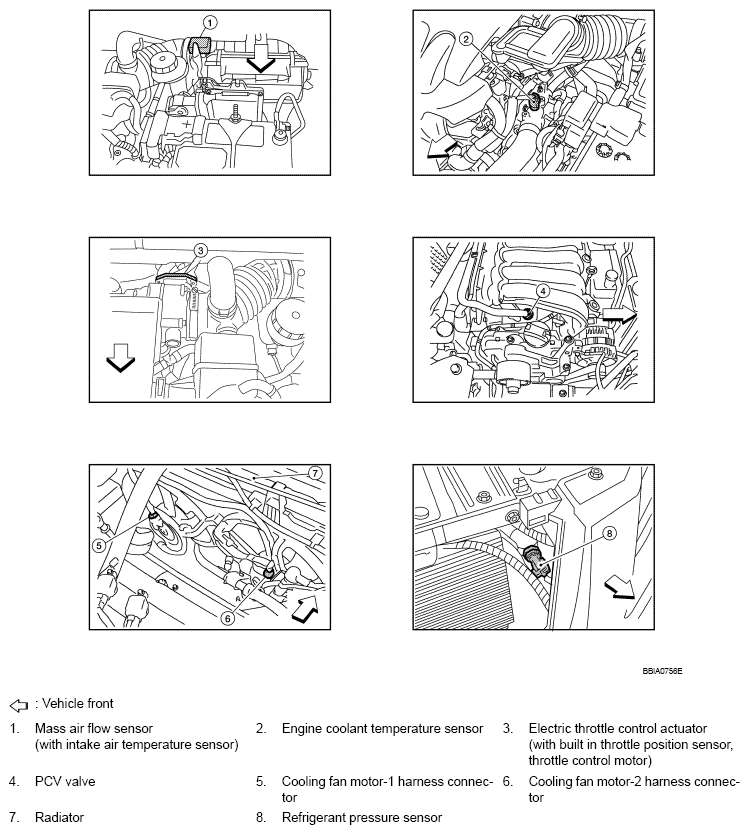

Fig 3: Location Of Engine Control Component Location (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

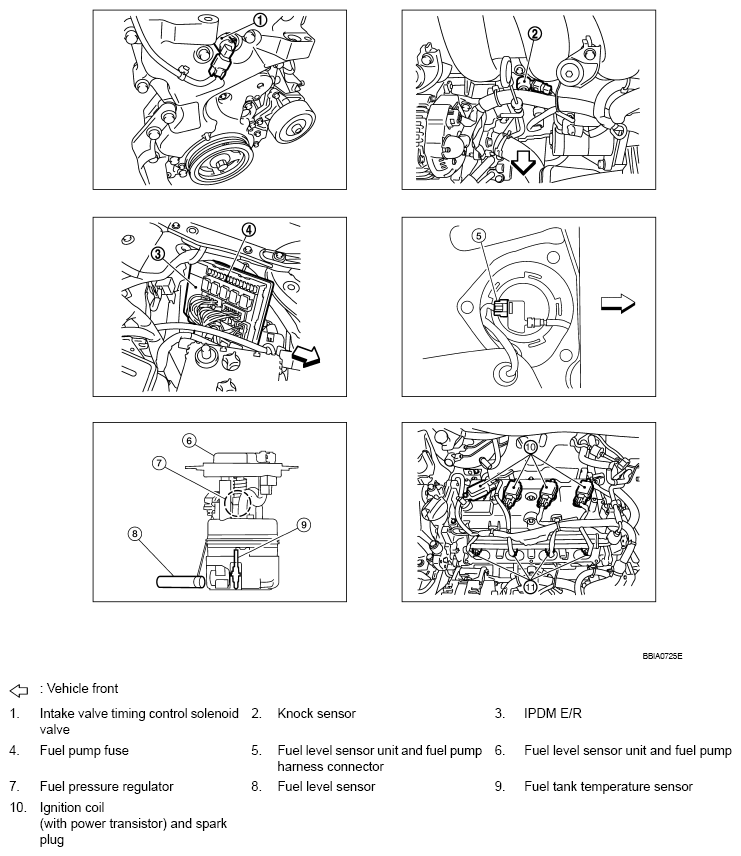

Fig 4: Location Of Engine Control Component Location (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Air Fuel Ratio Sensor And Three Way Catalyst

Courtesy of NISSAN MOTOR CO., U.S.A.

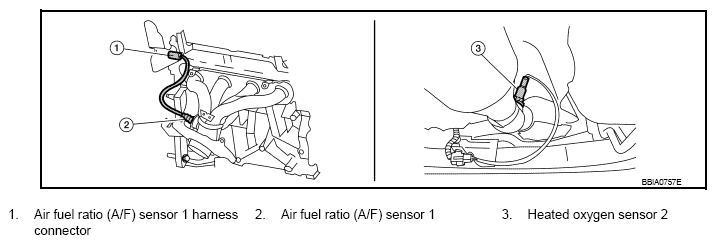

Fig 6: Location Of Heated Oxygen Sensor, Air Fuel Ratio Sensor 1 Harness Connector And Air Fuel Ratio (A/F) Sensor 1

Courtesy of NISSAN MOTOR CO., U.S.A.

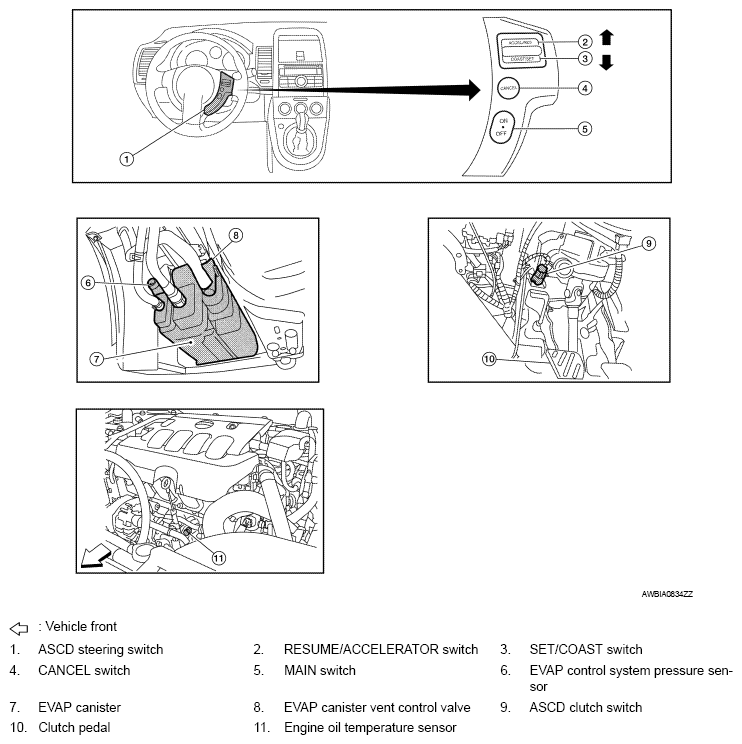

Fig 7: Location Of ASCD Steering Switch, EVAP Canister Vent Control Valve, CANCEL Switch And Related Components

Courtesy of NISSAN MOTOR CO., U.S.A.
