Vacuum Hose Drawing

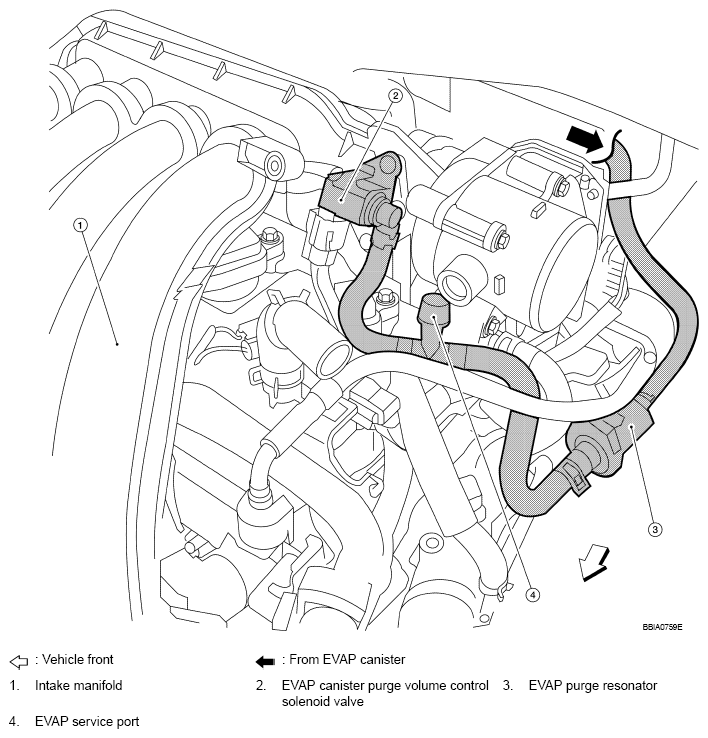

Fig 1: Location Of Intake Manifold, EVAP Canister Purge Volume Control Solenoid Valve And EVAP Purge Resonator
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
Refer to "SCHEMATIC " for Vacuum Control System .
