Primary Speed Sensor: Components

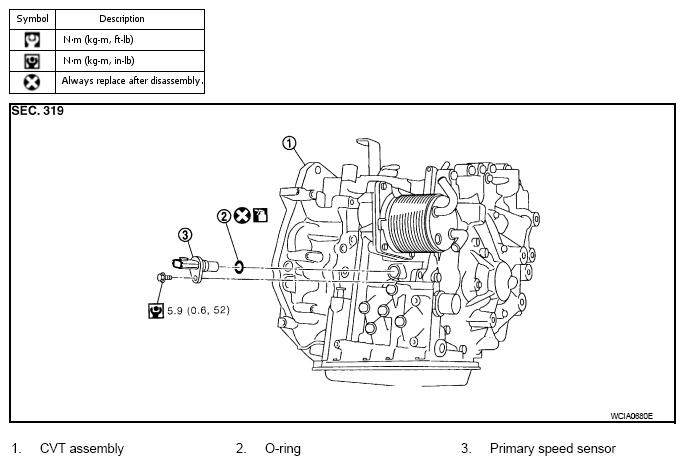

Fig 1: Exploded View Of Primary Speed Sensor Components With Torque Specifications
G07139249Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not reuse O-ring.
  • Apply CVT fluid to O-ring.
  • After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to "CHECKING CVT FLUID ".
