Removal and Installation: Components

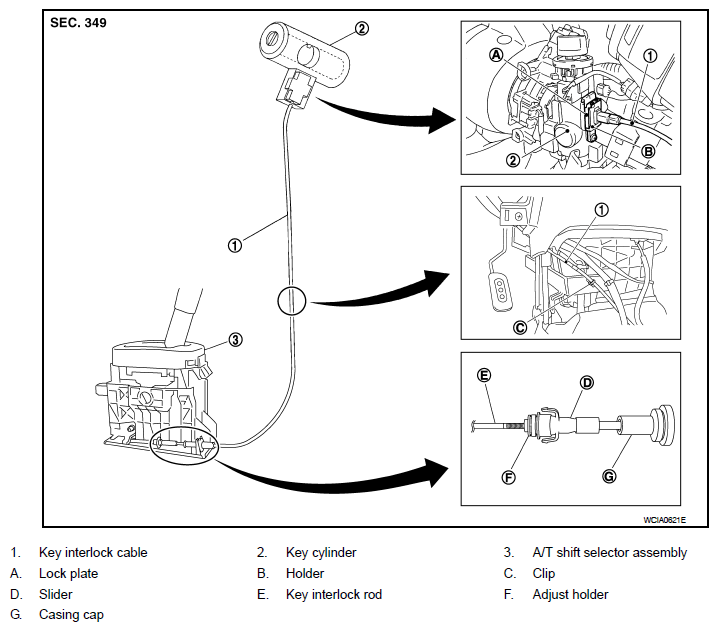

Fig 1: Identifying Key Interlock Cable Components
G06538590Courtesy of NISSAN MOTOR CO., U.S.A.
