Control Valve Assembly and Accumulators: Components

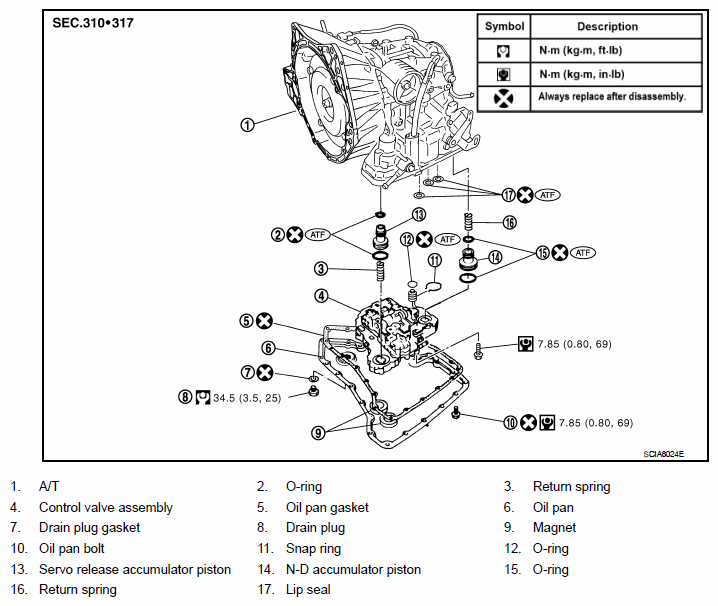

Fig 1: Identifying Control Valve Assembly And Accumulators Components
Courtesy of NISSAN MOTOR CO., U.S.A.
