Input Speed Sensor: Components

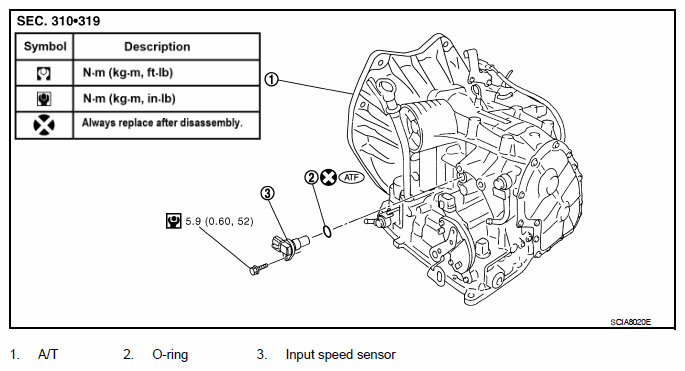

Fig 1: Input Speed Sensor Replacement Components With Torque Specifications
G06538618Courtesy of NISSAN MOTOR CO., U.S.A.
