Control Valve Assembly: Assembly

Install control valve upper, inter and lower body.
1. Place oil circuit of control valve upper body face up. Install steel balls in their proper positions.

  Fig 1: Identifying Steel Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install reamer bolts (F) from bottom of control valve upper body (1). Using reamer bolts (F) as guides, install separating plate (2) as a set.

  Fig 2: Identifying Reamer Bolts And Control Valve Upper Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install pilot filter (1) on control valve upper body (2).

  Fig 3: Identifying Pilot Filter And Control Valve Upper Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Place control valve inter body as shown in the illustration (side of control valve lower body face up). Install steel balls in their proper positions.

  Fig 4: Identifying Steel Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Install control valve inter body (1) on control valve upper body (2) using reamer bolts (F) as guides.
  CAUTION: Be careful not to dislocate or drop steel balls.

  Fig 5: Identifying Control Valve Inter Body And Control Valve Upper Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install check balls (1), line pressure relief valve springs (2) and torque converter pressure holding spring (3) in their proper positions in control valve lower body (4).

  Fig 6: Identifying Check Balls, Line Pressure Relief Valve Springs And Torque Converter Pressure Holding Spring
  Courtesy of NISSAN MOTOR CO., U.S.A.
7. Install bolts (E) from bottom of control valve lower body (1). Using bolts (E) as guides, install separating plate (2) as a set.
8. Install support plates (3) on control valve lower body (1).

  Fig 7: Identifying Support Plates And Control Valve Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install control valve lower body (1) on control valve inter body (2) using reamer bolts (F) as guides, and tighten reamer bolts (F) slightly.

  Fig 8: Identifying Control Valve Lower Body And Control Valve Inter Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings on solenoid valves and terminal body.

Fig 9: Identifying O-Rings, Solenoid Valves And Terminal Body
Courtesy of NISSAN MOTOR CO., U.S.A.

Install and tighten bolts.

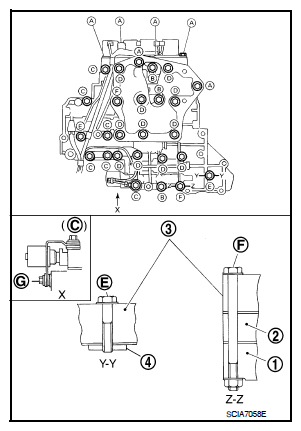

Fig 10: Identifying Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Bolt length, number and location:

BOLT SPECIFICATION

Bolt symbol

F⁽¹⁾

Bolt length "l " [mm (in)]

13.5 (0.531)

58.0 (2.283)

40.0 (1.575)

66.0 (2.598)

33.0 (1.299)

78.0 (3.071)

18.0 (0.709)

Number of bolts

Tightening torque [N.m (kg-m, in-lb)]

8.6 (0.88, 76)

5.0 (0.51, 44)

8.6 (0.88, 76)

⁽¹⁾	Reamer bolt and nut.

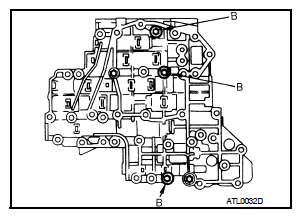

Install and tighten bolts (B) to the specified torque.

Fig 11: Identifying Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install solenoid valve assembly (1) on control valve assembly.
Tighten bolts (A), (C) and (G) to the specified torque.

Fig 12: Identifying Solenoid Valve Assembly And Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove reamer bolts (F), and then set oil strainer (1) on control valve assembly
Install and tighten bolts (A), (D), reamer bolts (F) and nuts to the specified torque.

Fig 13: Identifying Reamer Bolts And Oil Strainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten bolts (E) to the specified torque.

Fig 14: Identifying Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
