A/T Shift Selector Removal and Installation
>>
Control Cable Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Control Cable Components

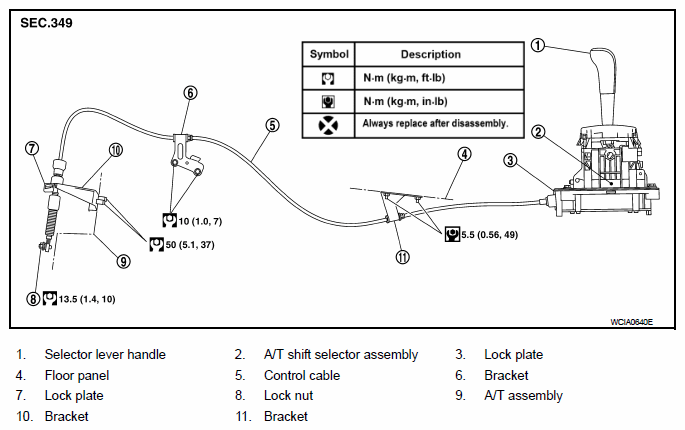

Fig 1: Identifying Control Cable Components
Courtesy of NISSAN MOTOR CO., U.S.A.
