Power Window System: Schematic

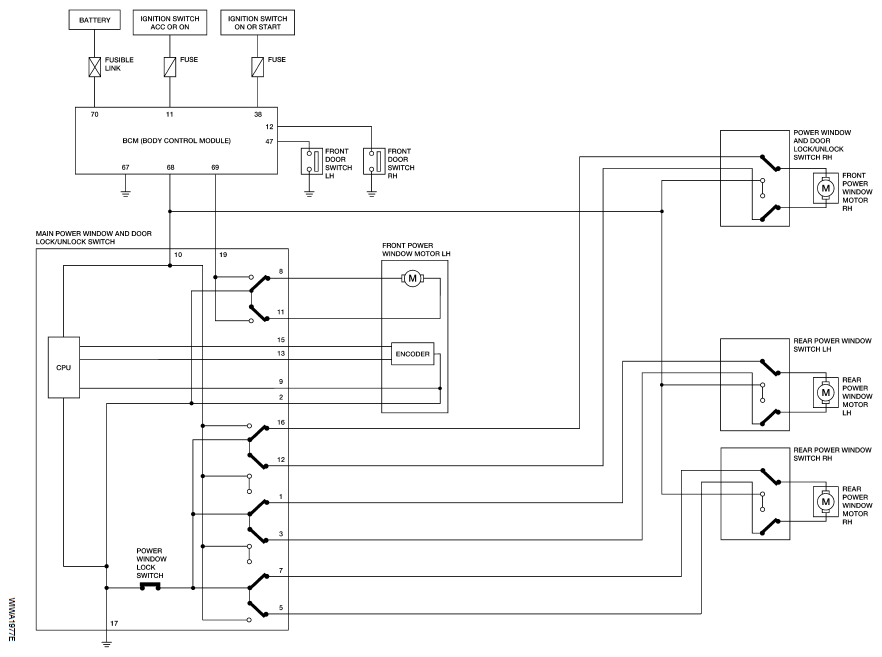

Fig 1: Power Window System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
