Exploded View: Disassembly

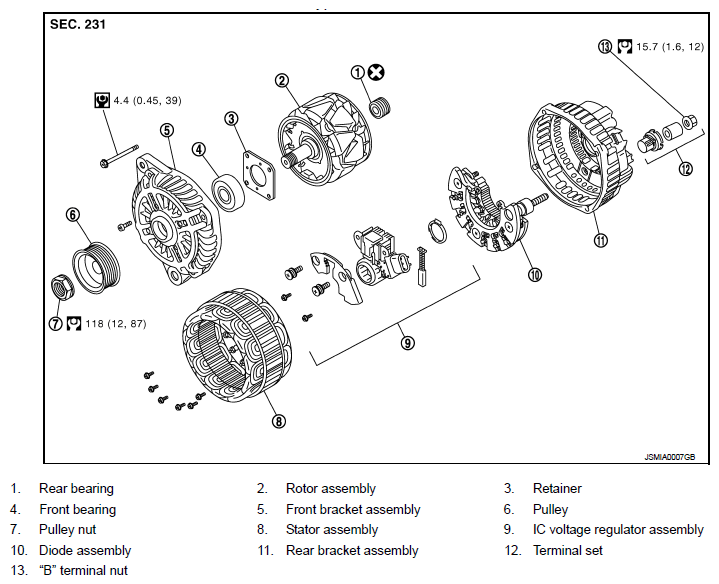

Fig 1: Exploded View Of View Of Alternator With Torque Specifications
G08106567Courtesy of NISSAN NORTH AMERICA, INC.

Refer to , COMPONENTS for symbols in the figure.
