Exploded View: Disassembly

Type: 114-932

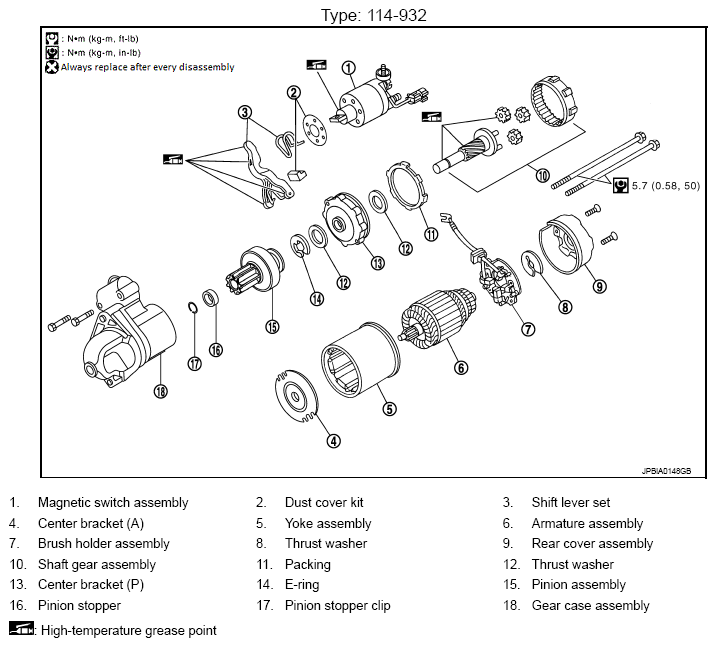

Fig 1: Starter Motor Replacement Components With Torque Specifications
G08102919Courtesy of NISSAN NORTH AMERICA, INC.

Refer to , COMPONENTS for symbols not described on the above.
