Exploded View

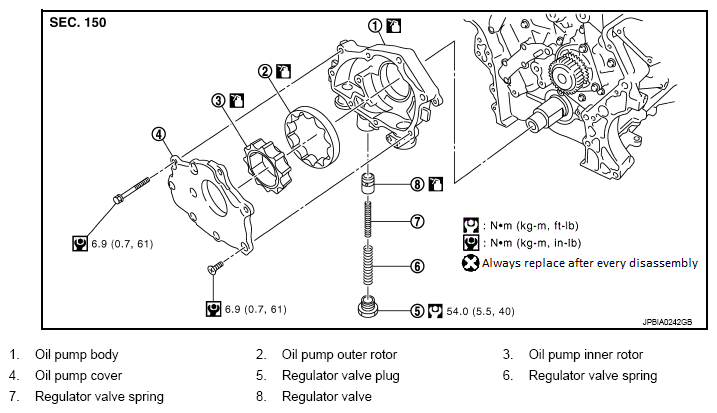

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G08102305Courtesy of NISSAN NORTH AMERICA, INC.

Refer to , COMPONENTS for symbols in the figure.
