Engine Control System - Introduction
>>
System Description
>>
Air Conditioning Cut Control
>>
Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Parts Location

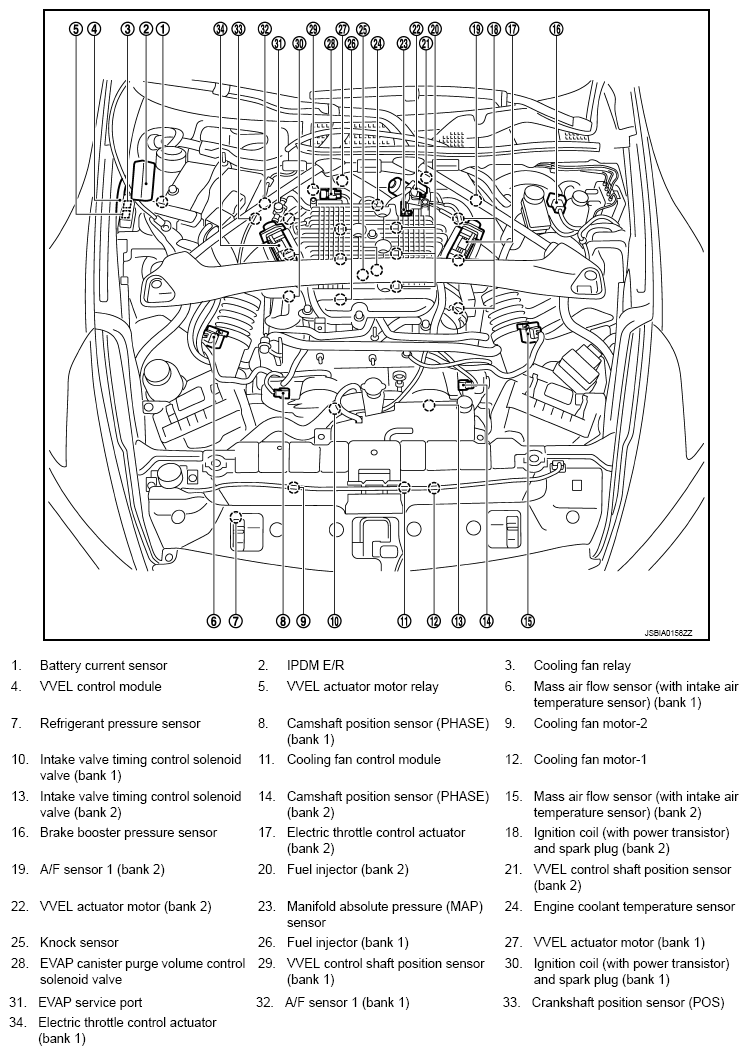

Fig 1: Identifying Engine Control System Component Location
Courtesy of NISSAN NORTH AMERICA, INC.

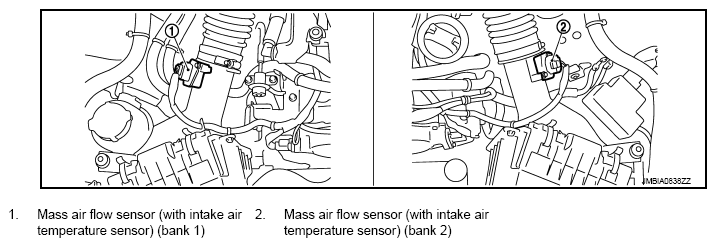

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)
Courtesy of NISSAN NORTH AMERICA, INC.

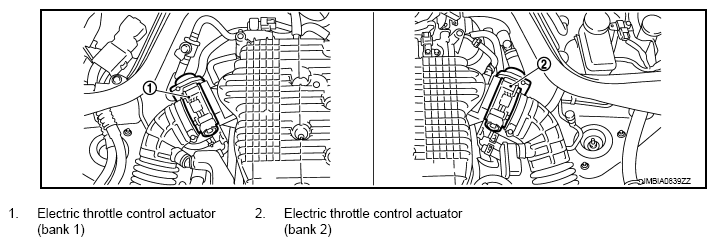

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks
Courtesy of NISSAN NORTH AMERICA, INC.

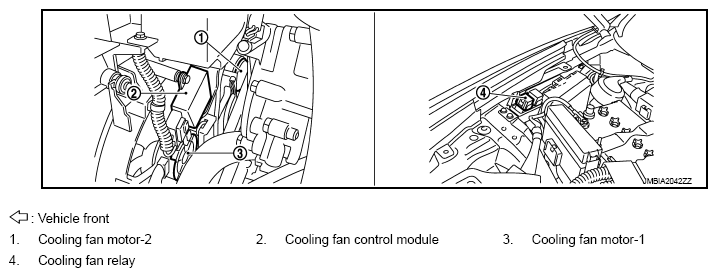

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay
Courtesy of NISSAN NORTH AMERICA, INC.

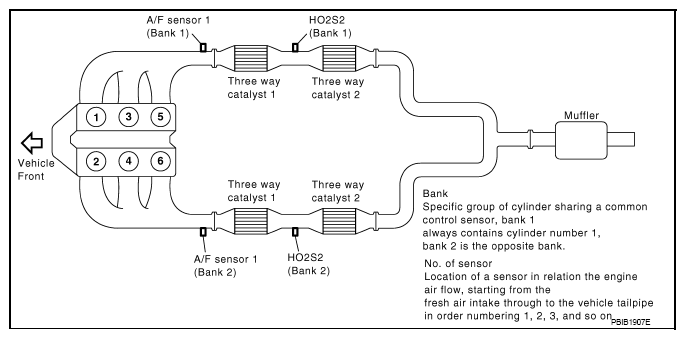

Fig 5: Engine Exhaust Control Component Location
Courtesy of NISSAN NORTH AMERICA, INC.

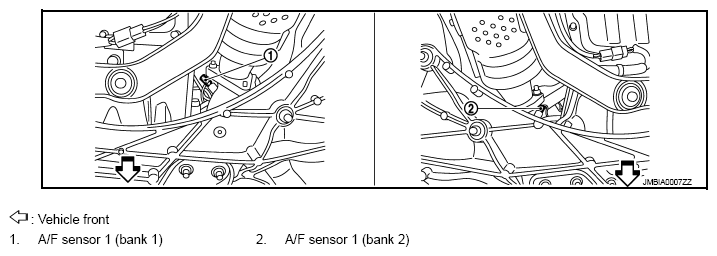

Fig 6: Identifying A/F Sensor On Both Banks
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Identifying A/F Sensor Harness Connector On Both Banks
Courtesy of NISSAN NORTH AMERICA, INC.

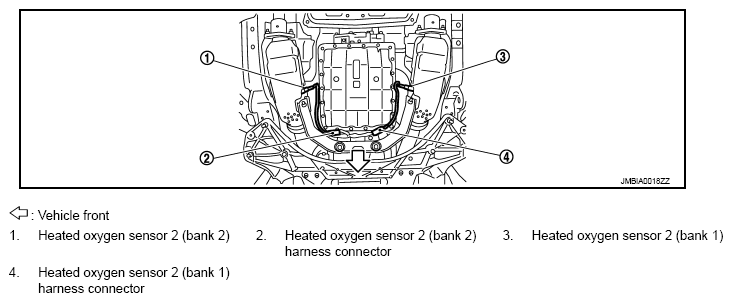

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks
Courtesy of NISSAN NORTH AMERICA, INC.

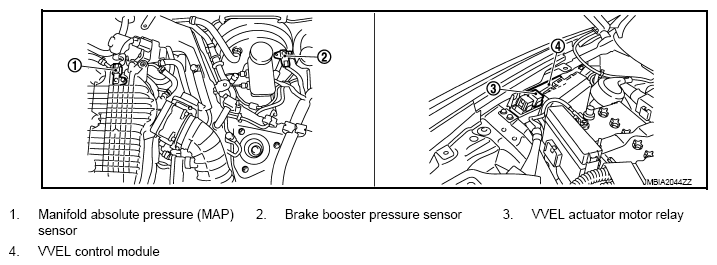

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module
Courtesy of NISSAN NORTH AMERICA, INC.

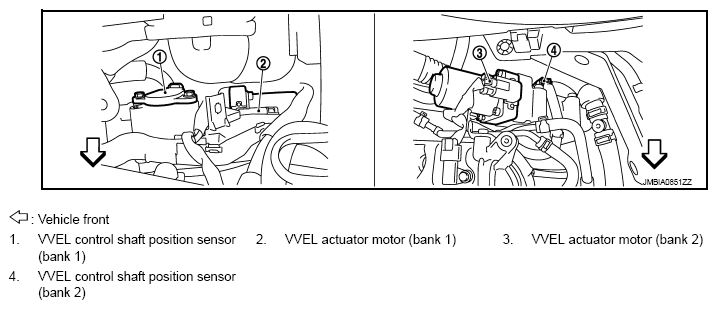

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor On Both Banks
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.

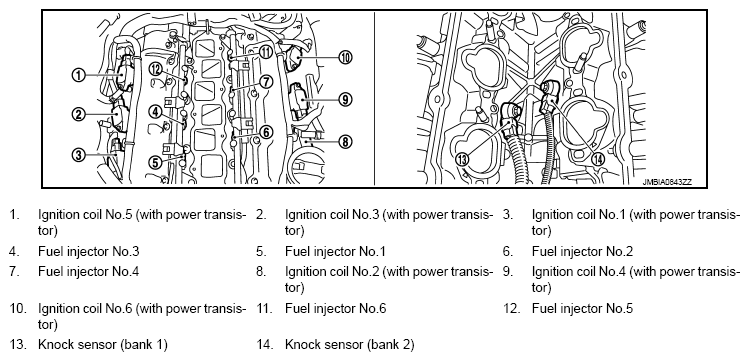

Fig 12: Identifying Ignition Coils And Fuel Injectors
Courtesy of NISSAN NORTH AMERICA, INC.

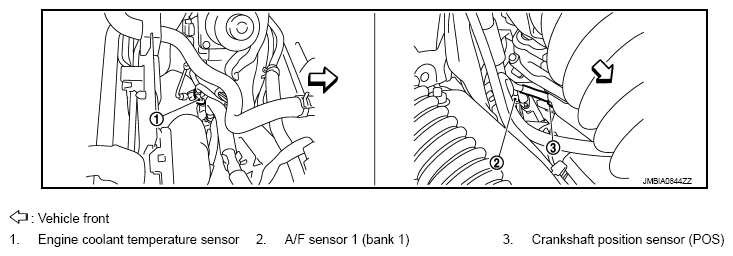

Fig 13: Identifying Engine Coolant Temperature Sensor And Crankshaft Position Sensor
Courtesy of NISSAN NORTH AMERICA, INC.

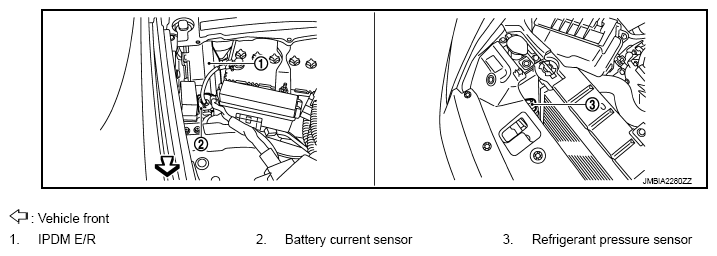

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor
Courtesy of NISSAN NORTH AMERICA, INC.

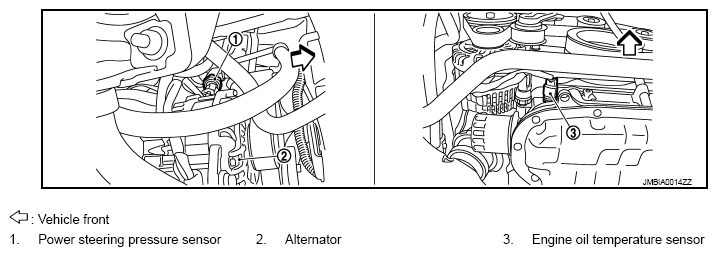

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor
Courtesy of NISSAN NORTH AMERICA, INC.

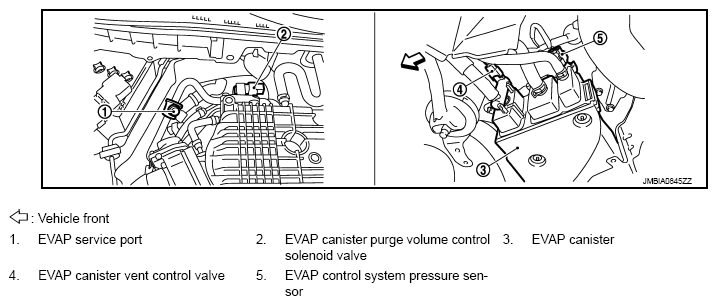

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve
Courtesy of NISSAN NORTH AMERICA, INC.

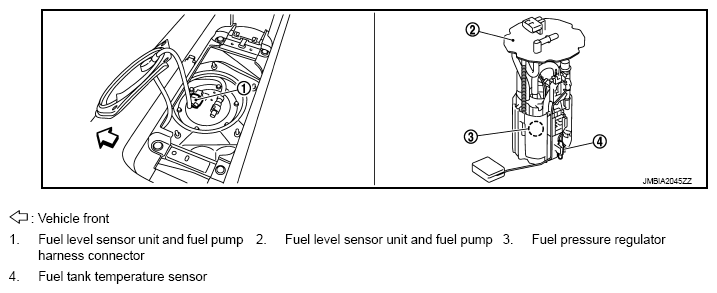

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump And Fuel Tank Temperature Sensor
Courtesy of NISSAN NORTH AMERICA, INC.

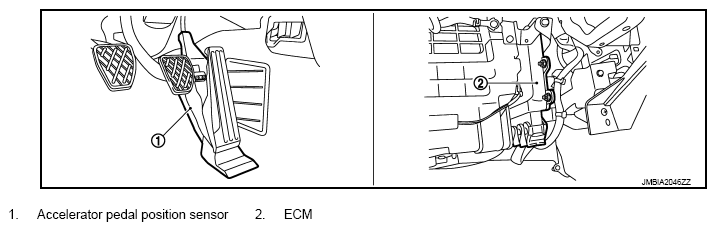

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM
Courtesy of NISSAN NORTH AMERICA, INC.

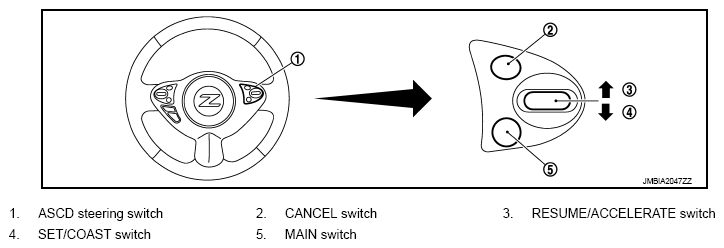

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Resume/Accelerate Switch And Main Switch
Courtesy of NISSAN NORTH AMERICA, INC.

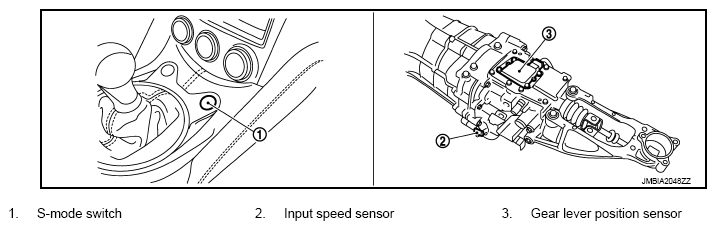

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor
Courtesy of NISSAN NORTH AMERICA, INC.

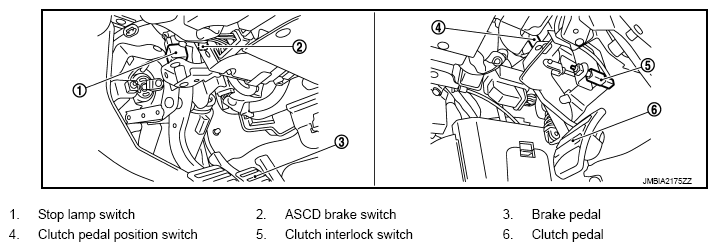

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Clutch Interlock Switch And Brake Pedal
Courtesy of NISSAN NORTH AMERICA, INC.
